The Broadcom Limited HCPL-2611-360E is a logic output optoisolator designed for reliable signal isolation. It provides 3750Vrms of isolation voltage, ensuring protection between circuits.
This optoisolator operates at a data rate of 10MBd and features an open collector, Schottky clamped output type. It has a common mode transient immunity of 15kV/µs, making it robust against noise. The device supports a DC input type and can handle an output current of 20mA.

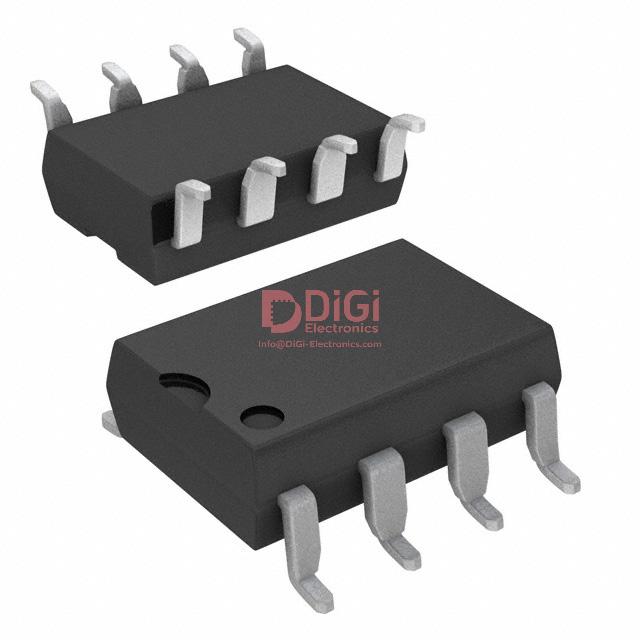

Packaged in an 8-DIP Gull Wing (SMD) format, the HCPL-2611-360E is suitable for surface mounting. It operates within a temperature range of -40°C to 85°C. The part has 1 channel and accepts 1/0 inputs.
Key electrical specifications include a propagation delay of 100ns (tpLH/tpHL) and typical rise/fall times of 24ns and 10ns, respectively. This component is designed for applications requiring high-speed signal isolation with robust performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HCPL-2611-360E provides 3750Vrms of isolation voltage.
The HCPL-2611-360E has a data rate of 10MBd.
It features an open collector, Schottky clamped output type.
The operating temperature range is -40°C to 85°C.
This optoisolator is designed for surface mounting.
