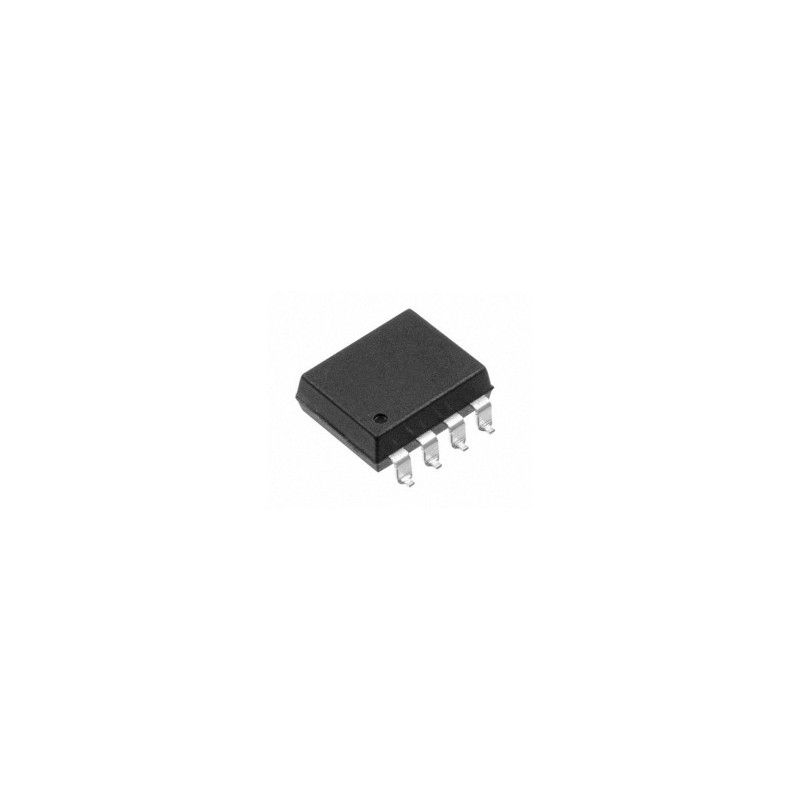

The HCPL-2601-300E is a single-channel gate output optoisolator from Avago Technologies, designed for high-speed logic isolation. It supports a data rate of 10 Mb/s with typical propagation delays of 48 ns (tPLH) and 50 ns (tPHL). The output is a gate type capable of sourcing 50 mA. The device operates from a 5 V DC supply and features a forward voltage of 1.5 V at 10 mA forward current. It provides 3.75 kVrms isolation voltage and a common mode transient immunity (slew rate) of 15 kV/μs. Rise and fall times are 24 ns and 10 ns respectively. The part is housed in a gull wing 8 SMD package and operates over a temperature range of -40 to +85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating supply voltage is 5 V DC.
It comes in a gull wing 8 SMD package.
The operating temperature range is -40 to +85 °C.
The isolation voltage is 3.75 kVrms.
The data rate is 10 Mb/s.
