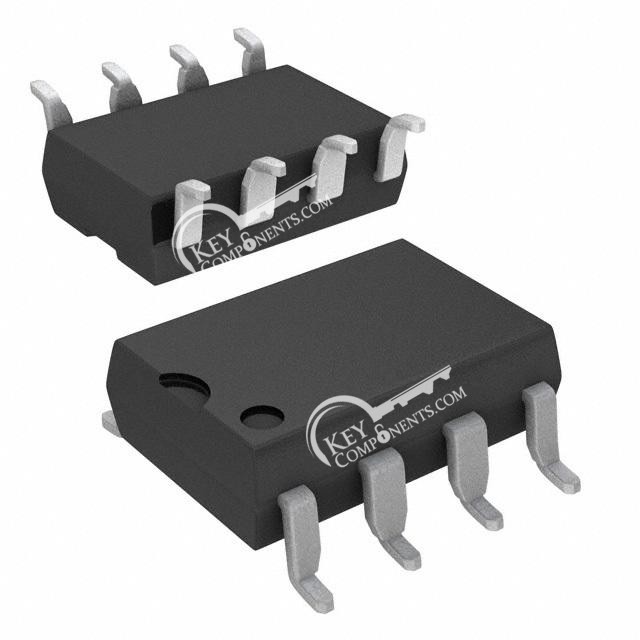

The HCPL-2201#500 from Broadcom Limited is a high-speed optoisolator designed for logic output applications. It provides 3750Vrms of isolation, ensuring signal integrity and protection in electronic circuits.
This optoisolator operates with a data rate of up to 5MBd and features a Push-Pull, Totem Pole output type. Key electrical characteristics include a typical forward voltage of 1.5V at 10mA and a supply voltage range of 4.5V to 20V. The common mode transient immunity is rated at a minimum of 1kV/µs.
Designed for surface mounting, the HCPL-2201#500 comes in an 8-SMD, Gull Wing package, with the supplier device package specified as 8-DIP Gull Wing. It operates within a temperature range of -40°C to 85°C. The device has one channel and accepts DC input.
This component is suitable for applications requiring reliable signal isolation and high-speed data transfer.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HCPL-2201#500 offers 3750Vrms of isolation.
The maximum data rate for the HCPL-2201#500 is 5MBd.
The HCPL-2201#500 features a Push-Pull, Totem Pole output type.
The operating temperature range is -40°C to 85°C.
The HCPL-2201#500 is supplied in an 8-SMD, Gull Wing package.
