| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
933 pcs
|
933 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input Type | |
| Number of Channels | |
| Output Type |

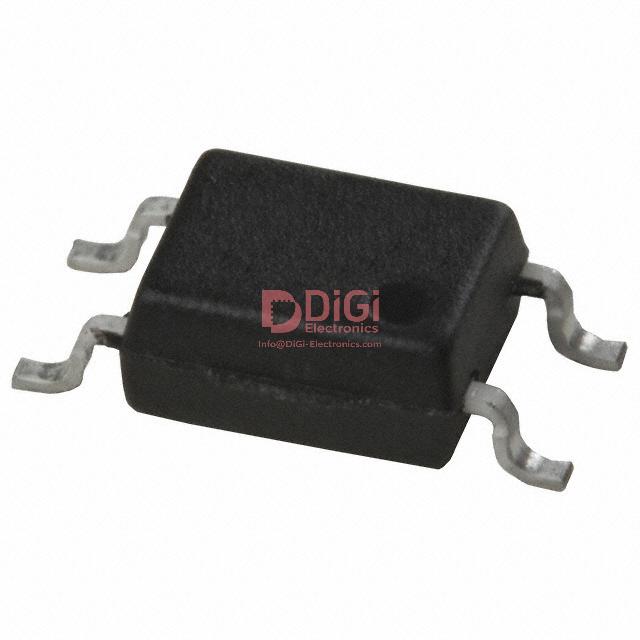

The Broadcom Limited HCPL-181-000E is an optoisolator designed for signal isolation applications. It features a single channel with a transistor output, capable of handling a maximum output voltage of 80V and an output current of 50mA per channel.
Key electrical specifications include an isolation voltage of 3750Vrms. The current transfer ratio ranges from a minimum of 50% at 5mA to a maximum of 600% at 5mA. The device has typical rise and fall times of 4µs and 3µs, respectively, with a DC input type.
This component is supplied in a 4-SOIC package and is suitable for surface mount applications. The packaging is available in Cut Tape (CT) and Digi-Reel® formats.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HCPL-181-000E offers an isolation voltage of 3750Vrms.
The current transfer ratio is a minimum of 50% at 5mA and a maximum of 600% at 5mA.
The typical rise time is 4µs and the typical fall time is 3µs.
The HCPL-181-000E has a transistor output.
The maximum output voltage is 80V and the output current per channel is 50mA.
The HCPL-181-000E is supplied in a 4-SOIC package.
