| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,199 pcs
|
5199 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Common Mode Transient Immunity (Min) | |
| Data Rate | |
| Inputs | |
| Isolated Power | |
| Lead Style | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Operating Voltage | |
| Propagation Delay tpLH | |
| Pulse Width Distortion (Max) | |
| Rise | |
| Supplier Device Package | |
| Technology | |
| Type | |
| Voltage |

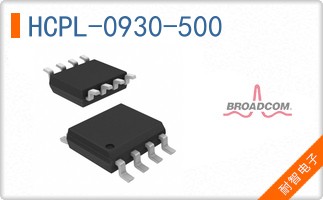

The Broadcom Limited HCPL-0930-500 is a digital isolator designed for general-purpose applications. It features GMR technology and provides 2500Vrms of isolation.
This device operates with 2 channels and supports unidirectional signal transmission. It boasts a high data rate of 110MBd, with propagation delays of 15ns and rise/fall times of 1ns. The common-mode transient immunity is rated at a minimum of 15kV/µs, ensuring robust performance in noisy environments.
The HCPL-0930-500 operates within a voltage range of 3V to 5.5V and has an operating temperature range of -55°C to 125°C. It is housed in an 8-SOIC package and is designed for surface mount applications.
This digital isolator is suitable for applications requiring reliable signal isolation, such as in industrial control systems and communication interfaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.30 | $4.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HCPL-0930-500 provides 2500Vrms of isolation.
The HCPL-0930-500 has 2 channels.
The maximum data rate supported by the HCPL-0930-500 is 110MBd.
The HCPL-0930-500 operates between -55°C and 125°C.
The HCPL-0930-500 is supplied in an 8-SOIC package.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
