| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
538 pcs
|
538 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
240 pcs
|
240 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request | |
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Forward Voltage | |
| Mounting Type | |
| Number of Channels | |
| Number of Pins | |
| Package / Case |

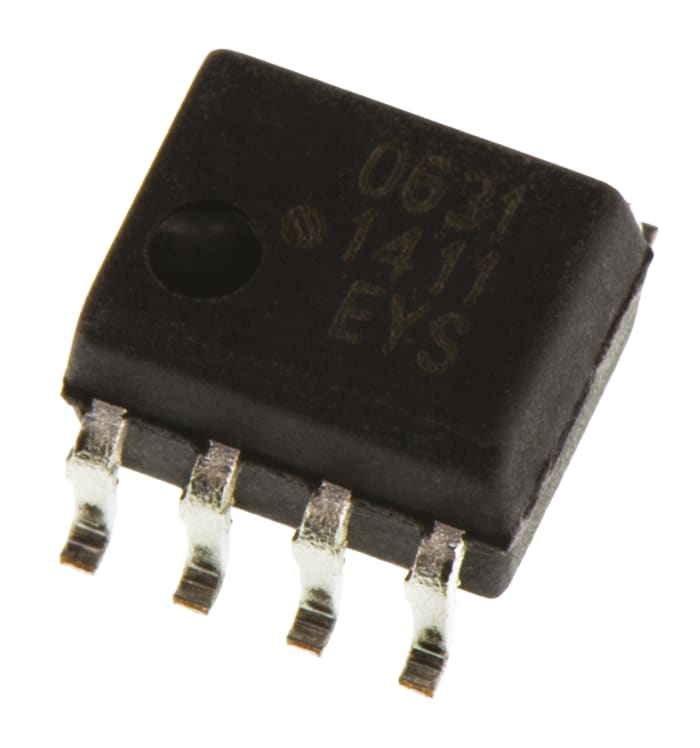

The Broadcom HCPL-0631-000E is a 2-channel optocoupler designed for isolated communication logic interface and control applications. It operates with a DC input current type and has a maximum forward voltage of 1.75V and a maximum input current of 20mA.
This optocoupler provides an isolation voltage of 3.75kVrms, ensuring robust separation between input and output circuits. It features typical rise and fall times of 24ns and 10ns, respectively, making it suitable for digital communication at 10MBd.
The device is housed in an 8-pin SOIC package for surface mounting. It operates within a temperature range of -40°C to 85°C and includes logic output.
Applications include industrial power systems, factory automation, power supplies, and medical equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.24 | $1.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum forward voltage is 1.75V.
The isolation voltage is 3.75kVrms.
The operating temperature range is -40°C to 85°C.
It is available in an 8-pin SOIC surface mount package.
It has 2 channels.
