| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,987 pcs
|
6987 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
108 pcs
|
108 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Number of Channels | |
| Number of Pins |

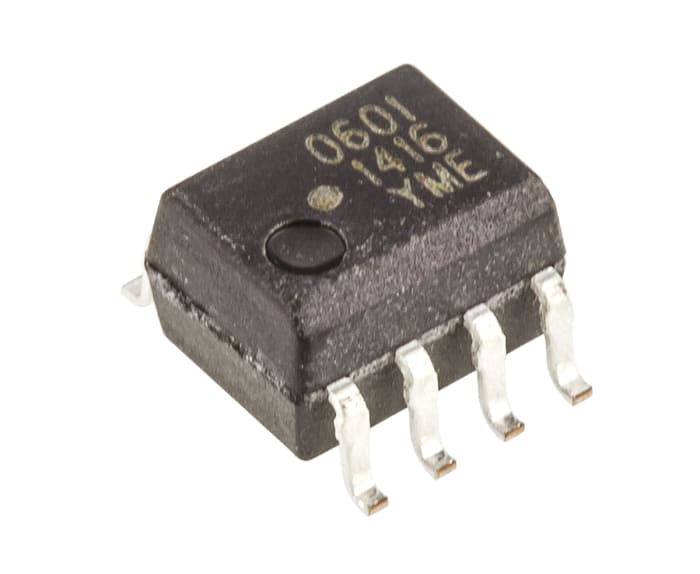

The Avago Technologies HCPL-0601-000E is a digital optocoupler designed for isolated communication logic interface and control applications. It features a surface mount SOIC package and operates with a DC input current type.
Key electrical specifications include a maximum forward voltage of 1.75V and a maximum input current of 150mA. The device provides a high isolation voltage of 3.75kVrms. It operates within a temperature range of -45°C to 80°C, with typical rise and fall times of 0.024μs and 0.01μs, respectively. This optocoupler has one channel and offers a logic output.
Suitable for industrial power systems, factory automation, power supplies, and medical equipment, the HCPL-0601-000E is packaged in a tube for surface mounting.
This component is part of the HCPL series and is approved to UL and CSA standards, also meeting the Automotive Standard AEC-Q100.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.30 | $4.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The isolation voltage is 3.75kVrms.
The maximum input current is 150mA.
The operating temperature range is -45°C to 80°C.
It is available in a SOIC package for surface mounting.
Yes, it features a logic output.
