| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Failure Rate | |
| Lead Spacing | |
| Lead Style | |
| Number of Channels | |
| Number of Pins | |
| Tape & Reel |

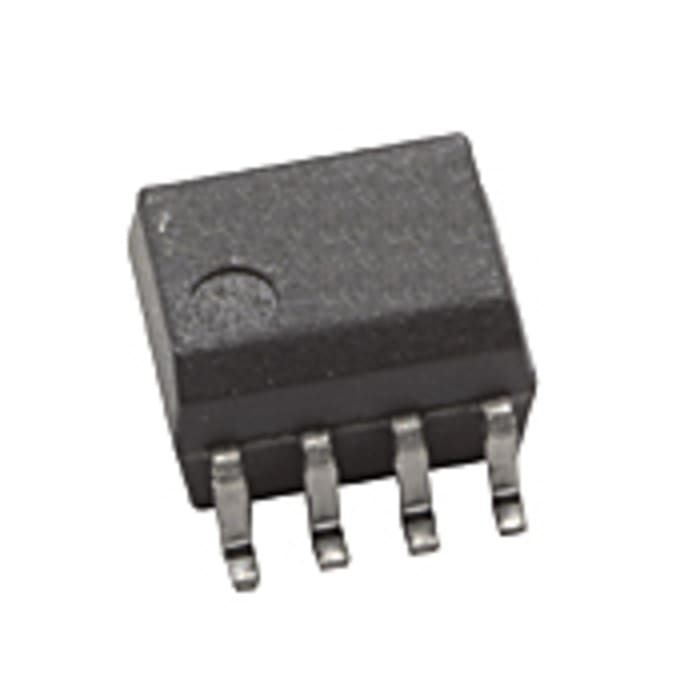

This Broadcom HCPL-0501-500E is a surface-mount optocoupler designed for logic output applications. It features a single channel with a maximum forward voltage of 1.8V and a maximum input current of 25mA. The device provides a high isolation voltage of 5000Vrms, ensuring robust electrical separation.
Packaged in an 8-pin SO format, this optocoupler is suitable for tape and reel packaging. It operates within a temperature range of 0°C to 70°C. The current transfer ratio ranges from a minimum of 19% to a maximum of 50%.
This component adheres to several standards, including IEC/EN/DIN EN 60747-5-5, UL, RoHS, and CSA. Its design makes it suitable for various electronic circuits requiring signal isolation and logic-level interfacing.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum forward voltage is 1.8V.
The HCPL-0501-500E has 1 channel.
The package type is SO.
The isolation voltage is 5000Vrms.
The operating temperature range is from 0°C to 70°C.
The minimum current transfer ratio is 19% and the maximum is 50%.
Yes, it has a logic output.
