| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

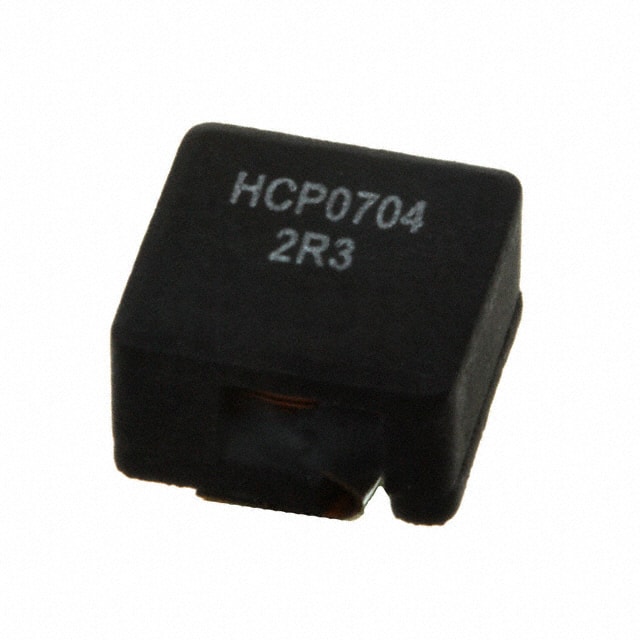

The HCP0704-2R3-R is a shielded drum core wirewound fixed inductor manufactured by Eaton - Electronics Division. It provides an inductance of 2.3 µH with a tolerance of ±25%. The component is rated for a continuous current of 7.5 A and has a saturation current of 11.5 A. The DC resistance (DCR) is typically 16.5 mΩ.
The inductor utilizes an iron powder core material and incorporates a shielded construction to minimize electromagnetic interference. It is designed for surface mount assembly and comes in a nonstandard package with dimensions of 6.80 mm x 6.80 mm x 4.00 mm. The operating temperature range spans from -40°C to 155°C, making it suitable for a variety of environments.
Typical applications include power supply filtering, DC-DC converters, and other high-current power management circuits where low losses and compact size are required. The drum core wirewound construction contributes to high current handling and stable inductance over a wide frequency range.
2.3 µH
7.5 A
16.5 mΩ
Nonstandard
Yes, it is shielded.
11.5 A
-40°C to 155°C
