| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
499 pcs
|
499 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request | |
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency Range | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Maximum Total Temperature | |
| Mounting Type | |
| Operating Temperature | |
| Reel Diameter | |
| Shielding | |
| Solder Reflow Temperature | |
| Tape and Reel Quantity | |
| Test Frequency | |
| Tolerance | |
| Type | |
| Width |

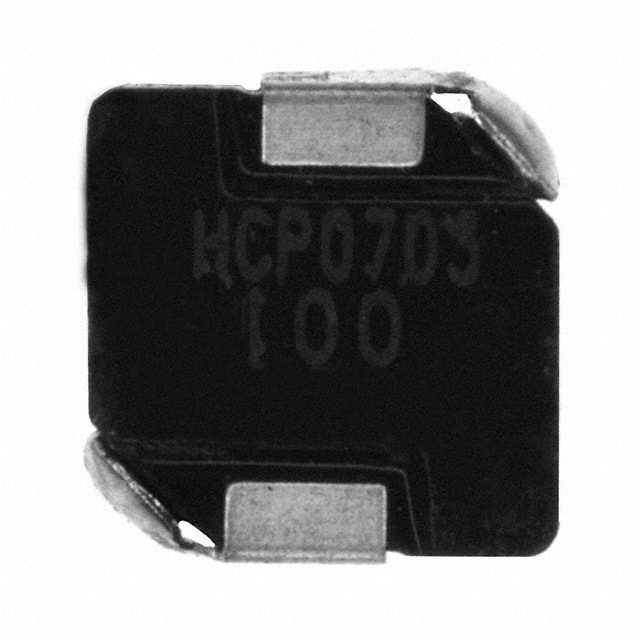

The HCP0703-100-R from Eaton - Electronics Division is a high-current, pressed power inductor from the HCP0703 series. This magnetically shielded component features a durable pressed powder iron core with an enhanced core coating for rust prevention and high insulation impedance.
With a nominal inductance of 10 µH and a tolerance of ±20%, this inductor is rated for a continuous current of 3A and a saturation current of 7A. Its DC resistance (DCR) is a maximum of 105mΩ at 20°C. The operating temperature range is -55°C to 125°C, with a maximum total temperature operation of 125°C.
Designed for surface mounting, the HCP0703-100-R has a compact 7.0 x 7.3 x 3.0mm package. It is supplied in tape and reel packaging, making it suitable for automated assembly processes. This inductor is recommended for new designs and is ideal for applications such as notebook power, VRM, multi-phase buck regulators, DC-DC converters, and routers.
The component operates up to 1MHz and is constructed with a wirewound type on a drum core. Its shielded design helps minimize electromagnetic interference (EMI), making it a reliable choice for power management circuits.
The inductance value is 10 µH with a tolerance of ±20%.
The inductor has a continuous current rating of 3A and a saturation current of 7A.
The maximum DC resistance at 20°C is 105mΩ.
The operating temperature range is -55°C to 125°C.
It is supplied in a Nonstandard surface mount package, typically in tape and reel.
