| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Common Mode Transient Immunity (Min) | |
| Current | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Propagation Delay tpLH | |
| Pulse Width Distortion (Max) | |
| Rise | |
| Supplier Device Package | |
| Technology | |
| Voltage |

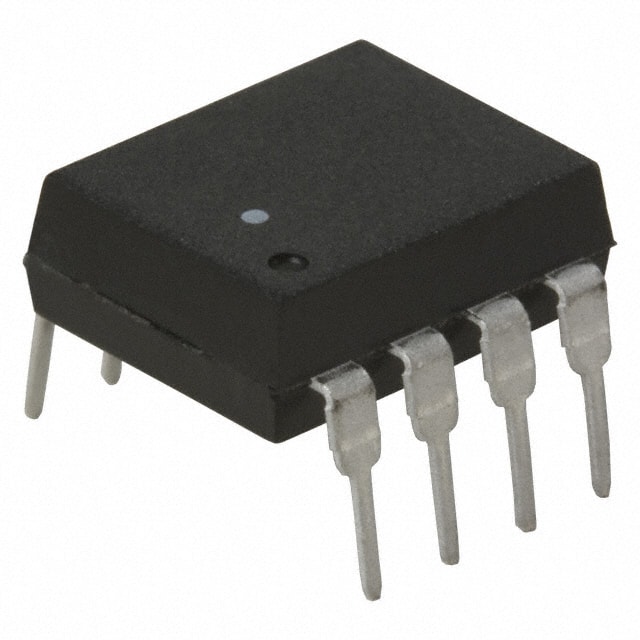

The Broadcom Limited HCNW3120 is a single-channel gate driver optoisolator with a voltage rating of 15V to 30V and a current rating of 25 mA. It features optical coupling technology and is housed in an 8-DIP package suitable for through-hole mounting.
This device offers a common mode transient immunity of 25kV/µs and operates within an extended temperature range of -40°C to 100°C. Key electrical characteristics include a propagation delay of 500ns and a rise time of 100ns, with a maximum pulse width distortion of 300ns.
The HCNW3120 is designed for applications requiring reliable isolation and gate driving capabilities. Its through-hole mounting makes it suitable for various industrial and electronic circuit designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.55 | $2.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HCNW3120 operates within a voltage range of 15V to 30V.
The current rating for the HCNW3120 is 25 mA.
The HCNW3120 has 1 channel.
The HCNW3120 operates from -40°C to 100°C.
The HCNW3120 is in an 8-DIP package.
The HCNW3120 has a through-hole mounting type.
