| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40,500 pcs
|
40500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

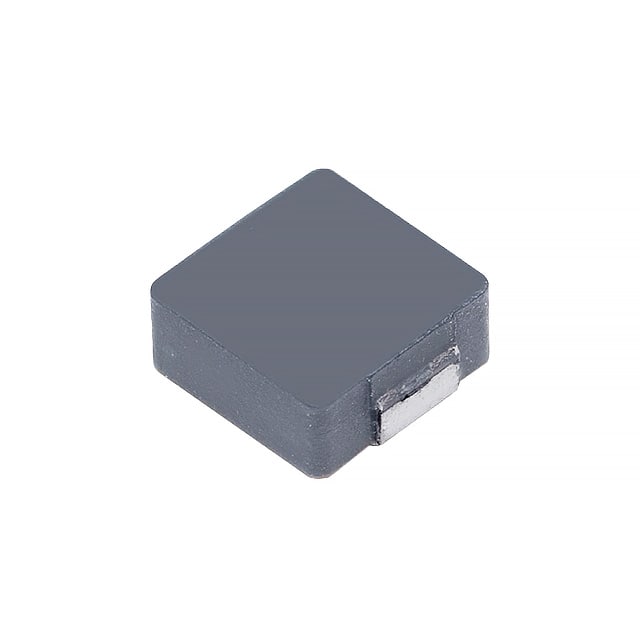

The Eaton HCMA0703-4R7-R is a shielded surface mount power inductor designed for high current applications. It features an iron powder core and provides 4.7 µH inductance with ±20% tolerance. The inductor has a maximum DC resistance of 40 mOhm and a rated current of 5.5 A based on temperature rise. The saturation current is 10 A. The operating temperature range is -55°C to 125°C, making it suitable for harsh environments. The component is AEC-Q200 qualified, indicating it meets automotive reliability standards. Its package is nonstandard, with dimensions of 7.10 mm length, 6.80 mm width, and 3.00 mm height. This inductor is suitable for use in power supply circuits, DC-DC converters, and EMI filtering in automotive, industrial, and consumer electronics.
4.7 µH.
40 mOhm maximum.
5.5 A based on temperature rise.
10 A.
Yes, it is shielded.
-55°C to 125°C.
Yes, it is AEC-Q200 rated.
