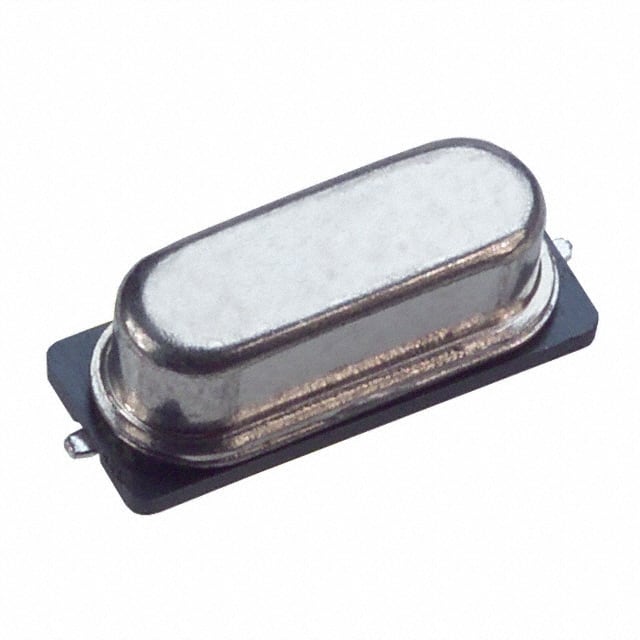

This is a quartz crystal resonator from Citizen Finedevice Co Ltd, part number HCM4914745600ABJT. It operates at a fundamental frequency of 14.7456 MHz with a frequency tolerance of ±30 ppm at 25°C and frequency stability of ±50 ppm over the operating temperature range of -10°C to 60°C. The equivalent series resistance (ESR) is 50 Ω maximum.
The crystal requires a load capacitance of 18 pF and has a shunt capacitance of 7.0 pF maximum. The drive level is 100 μW typical, and aging in the first year is ±5 ppm. Insulation resistance is 500 MΩ minimum at 100 V DC.
Housed in a compact HC-49/US surface-mount package measuring 11.4 mm x 4.7 mm x 4.3 mm, this crystal is suitable for consumer applications. It is RoHS compliant and supplied in tape and reel packaging.
