Mfr Part #:

HCF4098M013TR

Mfr Name: ST

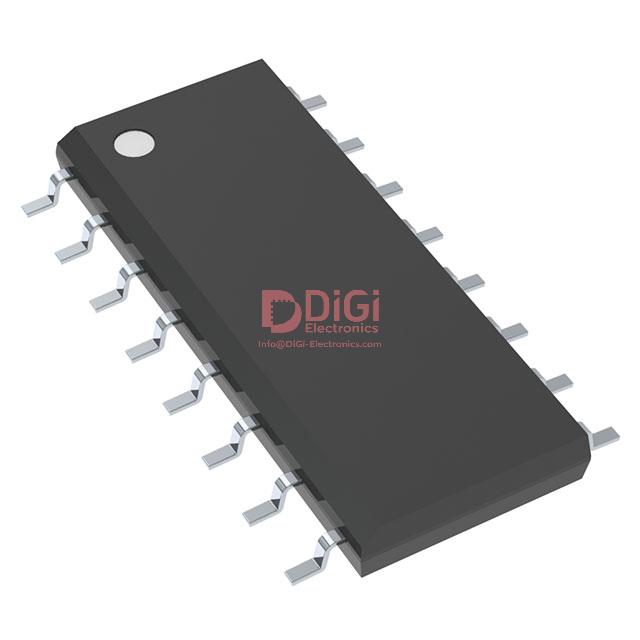

The ST HCF4098M013TR is a monostable multivibrator featuring a 100ns propagation delay and a wide operating voltage range of 3V to 18V. It is supplied in a 16-SOIC package.

✓ Total Stock: 482,638 pcs

$ Price Range: $0.50

HCF4098M013TR Available from 4 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Romaks Technologies ✓ Non-Authorised Inventory information	475,789 pcs On Request	475789 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Rayichip ✓ Non-Authorised Inventory information	5,000 pcs On Request	5000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	1,694 pcs On Request	1694 pcs	On Request	1	On Request	On Request	07+	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	155 pcs On Request	155 pcs	On Request	1	On Request	On Request	09+	On Request	On Request

HCF4098M013TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	ST
Logic Type	Monostable
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 125°C
Propagation Delay	100 ns
Voltage Supply	3 V ~ 18 V

View Similar Products (0)

HCF4098M013TR Description

Short technical summary and product information.

The STMicroelectronics HCF4098M013TR is a versatile monostable multivibrator IC designed for various timing applications. It offers two independent monostable circuits within a single package, providing flexibility in circuit design.

Key electrical characteristics include a propagation delay of 100 ns and an output current capability of 6.8mA for both high and low states. The device operates over a broad supply voltage range from 3V to 18V, making it suitable for diverse power environments. The operating temperature range is -55°C to 125°C, ensuring reliable performance in demanding conditions.

This component is housed in a 16-SOIC package, designed for surface mounting. The packaging is available in Cut Tape (CT) and Digi-Reel® formats. The HCF4098M013TR is RoHS3 compliant, indicating adherence to environmental standards.

Its robust design and specifications make it a suitable choice for applications requiring precise timing and signal generation.

HCF4098M013TR Quick Information

Product Type: Multivibrator

Series: 4000B

Canonical Name: ST HCF4098M013TR Monostable Multivibrator

Subcategory: Monostable Multivibrator

HCF4098M013TR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

HCF4098M013TR Estimated Pricing

Qty	Low	High
1+	$0.50	$0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

HCF4098M013TR Features

Dual monostable multivibrator circuits.
100 ns propagation delay.
Wide 3V to 18V operating voltage.
Surface mount 16-SOIC package.
RoHS3 compliant.

HCF4098M013TR Applications

Pulse generation circuits.
Timing control applications.
Digital logic systems.
Signal delay circuits.

HCF4098M013TR FAQs

7 frequently asked questions generated from this part’s specifications.

What is the supply voltage range for the HCF4098M013TR?

3V to 18V.

What is the operating temperature range?

-55°C to 125°C.

What package does the HCF4098M013TR come in?

16-SOIC.

How many independent circuits does it have?

What is the propagation delay?

100 ns.

What is the output current capability?

6.8 mA for both high and low outputs.

Does it have Schmitt trigger inputs?

No.
