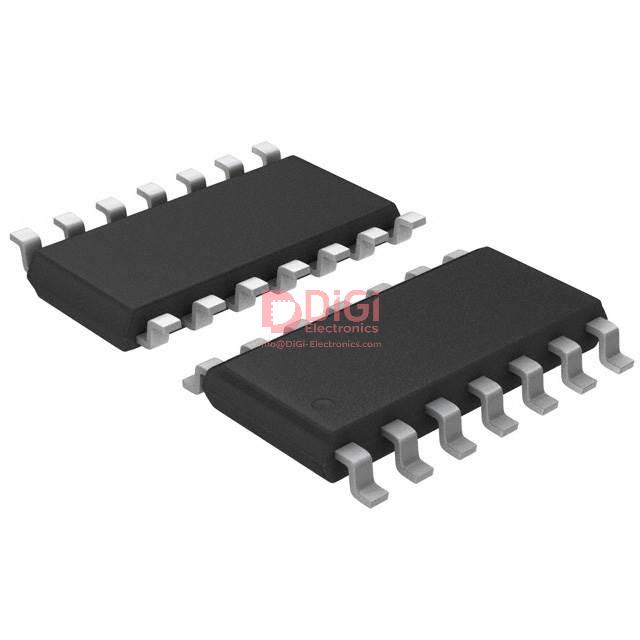

HCF4013M013TR The STMicroelectronics HCF4013M013TR is a dual D-type flip-flop IC. It features a clock frequency of 24 MHz and operates over a wide voltage range.
Mfr Part #:

HCF4013M013TR

Available from 1 distributors
Mfr Name: ST
ST
The STMicroelectronics HCF4013M013TR is a dual D-type flip-flop IC. It features a clock frequency of 24 MHz and operates over a wide voltage range.
✓ Total Stock: 200,000 pcs
$ Price Range: $0.86

HCF4013M013TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
200,000 pcs
On Request
200000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HCF4013M013TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Frequency
Function
Input Capacitance
Lead Style
Mounting Type
Number of Elements
Operating Temperature
Output Type
SVHC Present
Tape & Reel
Type
Voltage Supply
View Similar Products (0)

HCF4013M013TR Description

Short technical summary and product information.

The STMicroelectronics HCF4013M013TR is a dual D-type flip-flop integrated circuit designed for logic applications. This component features two independent D-type flip-flop elements, each capable of storing one bit of data.



Key electrical characteristics include a maximum clock frequency of 24 MHz and a maximum propagation delay of 90 ns at 15V with a 50pF load capacitance. The device operates over a wide supply voltage range from 3V to 20V, with a low quiescent current of 20 µA. Output drive capability is 6.8 mA for both high and low states.



This flip-flop IC utilizes a positive edge trigger mechanism. It is housed in a 14-SOIC surface-mount package with dimensions of 0.154 inches (3.90mm) width. The operating temperature range is from -55°C to 125°C.



The HCF4013M013TR is suitable for various digital logic designs requiring data storage and sequencing.

HCF4013M013TR Quick Information

Product Type: Dual D-Type Flip Flop IC
Series: HCF4013
Canonical Name: ST HCF4013M013TR Dual D-Type Flip Flop IC
Subcategory: D-Type

HCF4013M013TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

HCF4013M013TR Estimated Pricing

Qty Low High
1+ $0.86 $0.86

Estimated market price range - modelled values for guidance only, not live distributor offers.

HCF4013M013TR Features

  • Dual D-Type Flip Flop IC
  • 24 MHz maximum clock frequency
  • 90 ns maximum propagation delay
  • 3V to 20V supply voltage range
  • Surface mount 14-SOIC package

HCF4013M013TR Applications

  • Digital logic circuit design
  • Data storage applications
  • Sequential circuit implementation
  • Timing and control functions

HCF4013M013TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the HCF4013M013TR?

The operating voltage range is 3V to 20V.

What is the package type for the HCF4013M013TR?

The package type is 14-SOIC (0.154", 3.90mm Width).

What is the operating temperature range of the HCF4013M013TR?

The operating temperature range is -55°C to 125°C.

What is the RoHS status of the HCF4013M013TR?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the HCF4013M013TR?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.

What is the maximum clock frequency for this flip-flop?

The maximum clock frequency is 24 MHz.

What is the maximum propagation delay?

The maximum propagation delay is 90 ns at 15V, 50pF.
