| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power | |
| Power (Watts) | |
| Stability | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

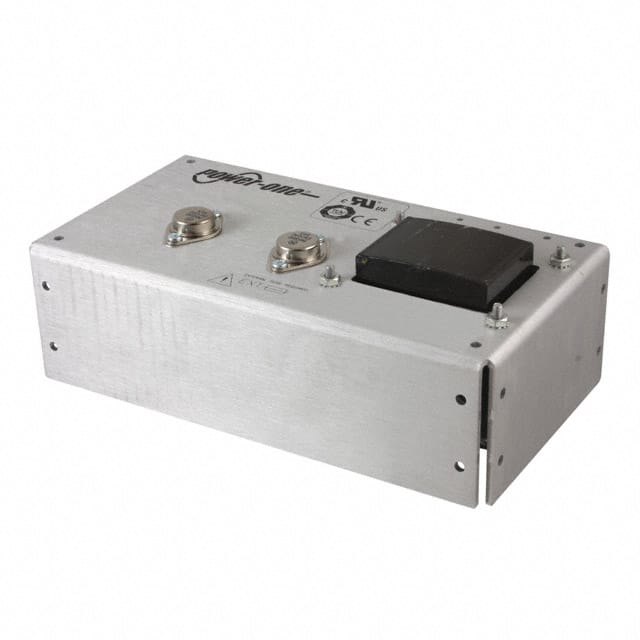

The Bel Power Solutions HCC512-AG is a versatile AC/DC converter with a power rating of 60W. It provides dual outputs, delivering 5V at 6A and 12V at 2.5A, making it suitable for a range of applications.
This converter operates with a universal input voltage range of 100-240 VAC and features a linear power supply type. Key electrical specifications include a typical efficiency of 45% for 5V units, line regulation of ±0.05%, and load regulation of ±0.05%. It also includes features like adjustable output and remote sense for enhanced control and performance.
Designed for industrial and commercial applications (ITE), the HCC512-AG is built for chassis mounting. Its dimensions are 238.3mm in length, 123.7mm in width, and 83.3mm in height. The operating temperature range is from 0°C to 50°C, with a storage temperature range of -40°C to +85°C.
Compliance standards include CE, CSA, and UL certifications, along with adherence to 60950-1 and 62368-1 standards. It is RoHS3 compliant and has an MSL rating of 1.
100-240 VAC, 47-63 Hz.
5 VDC at 6 A and 12 VDC at 2.5 A.
0°C to 50°C.
Case CC, chassis mount.
Yes, built-in on all 5 V models, set at 6.2 V ±0.4 V.
200,000+ hours per MIL-HDBK-217D.
Yes, remote sensing is provided on all models.
