Mfr Part #:

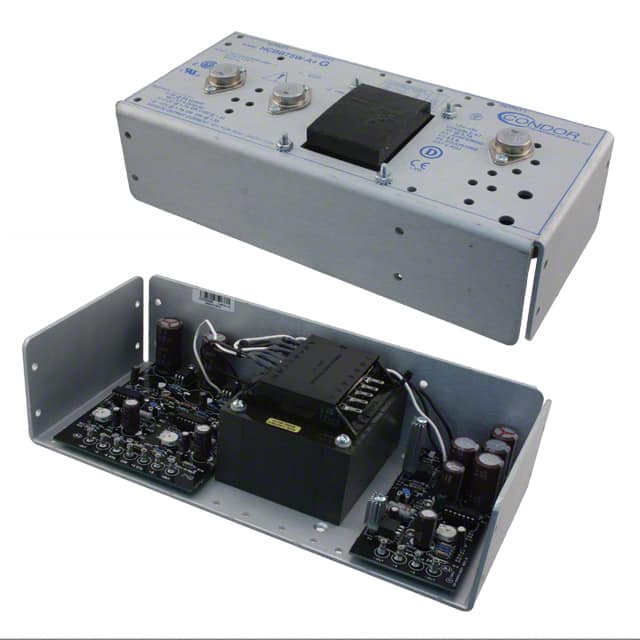

HCBB75W-A+G

Mfr Name: SL Power Electronics Manufacture of Condor/Ault Brands

The SL Power Electronics HCBB75W-A+G is a linear AC/DC converter with a 71W power rating. It offers adjustable output, remote sense, and universal input capabilities.

Stock on Request

HCBB75W-A+G Description

Short technical summary and product information.

This SL Power Electronics HCBB75W-A+G is a linear AC/DC converter designed for ITE (Commercial) applications. It features a chassis mount type and provides a 71W power output.

The converter operates with a universal input voltage range and offers adjustable output with remote sensing capabilities. Key electrical specifications include a 15V maximum output voltage and a 1.7A output current. It maintains a load regulation of 1% and line regulation of 1%, with a maximum output ripple of 3mV Pk-Pk.

Designed for reliability, it has an MTBF of over 200,000 hours per MIL-HDBK-217D. The operating temperature range is 0°C to 70°C with derating, and storage temperature ranges from -40°C to +85°C. Transformer insulation meets Class F (155°C) standards.

Compliance includes CE, cURus, and TUV approvals. It exceeds FCC and CISPR22 Class B conducted emissions standards. The unit is RoHS3 compliant and has an MSL of 1.

HCBB75W-A+G Quick Information

Product Type: AC/DC Converter

Canonical Name: SL Power Electronics Manufacture of Condor/Ault Brands HCBB75W-A+G Linear AC/DC Converter

Subcategory: Linear

HCBB75W-A+G Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

HCBB75W-A+G Features

Linear AC/DC converter for ITE applications.
71W total power output.
15V maximum output voltage.
1.7A maximum output current.
Chassis mountable design.

HCBB75W-A+G Applications

Ideal for laboratory test equipment.
Suitable for precision analog circuits.
Universal input for global applications.
Adjustable output for custom voltage needs.
Remote sense for accurate regulation.

HCBB75W-A+G FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range of the HCBB75W-A+G?

The input voltage range is 100 to 240 Vac (with tolerances: +10%/-13% at 100/120/240 Vac, +12%/-11% at 215 Vac; 47 to 63 Hz).

How many outputs does this converter provide and what are their voltages?

It provides three outputs: 5V and ±12V (from introtext).

What is the operating temperature range?

The operating temperature range is 0°C to 70°C with derating.

What protection features are included?

Short circuit protection uses automatic current limit/foldback. Overvoltage protection is built-in on the 5V output (set at 6.2V ±0.4V).

What is the efficiency of the HCBB75W-A+G?

Efficiency is 55% (typical).

What are the mechanical dimensions?

Dimensions are 279.4mm length, 124.0mm width, and 69.9mm height (11.00" x 4.88" x 2.75"). Mounting type is chassis mount.

What compliance standards does it meet?

It meets UL/CSA 60950 and EN/IEC60950-1 safety standards, and exceeds FCC and CISPR22 Class B conducted emissions limits.

Category	AC DC Converters
Manufacturer Name	SL Power Electronics Manufacture of Condor/Ault Brands
AEC Qualified	No
Applications	ITE (Commercial)
Approval Agency	CE, cURus, TUV
Automotive Grade	No
Current	1.7A
Efficiency	55%
Features	Adjustable Output, Remote Sense, Universal Input
Height	69.9mm (2.75")
Industrial Grade	No
Input Voltage	100V ~ 240V
Length	279.4mm (11.00")
Medical Grade	No
Military Grade	No
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature	0°C ~ 70°C (With Derating)
Output Voltage	15V
Power (Watts)	71W
SVHC Present	Not Present
Stability	±0.05%
Standards	UL/CSA 60950; EN/IEC60950-1
Storage Temperature	-40°C ~ +85°C
Temperature Coefficient	±0.01%/°C maximum
Type	Linear
Voltage	-12V
Width	124.0mm (4.88")
