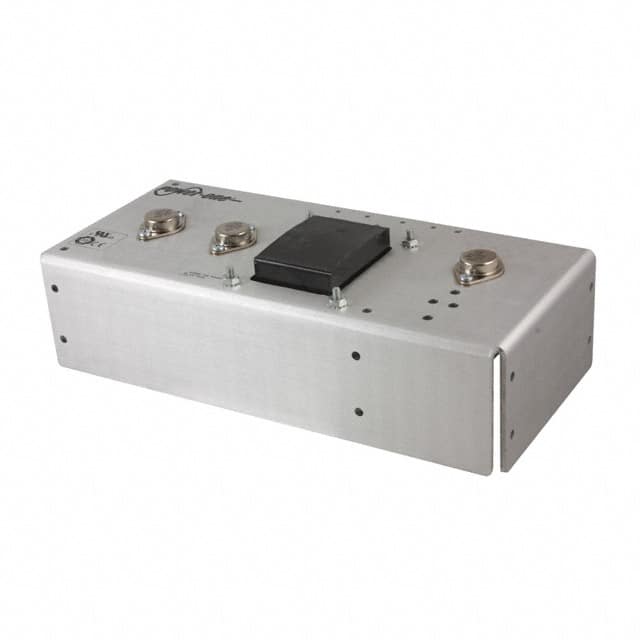

The Bel Power Solutions HCBB-75W-AG is a linear AC-DC converter designed for various applications. It features a chassis mount type and convection cooling.
This converter provides a power output of 75W, with an input voltage range spanning from 87 to 264 VAC. The output voltage can be selected from 5 to 48 VDC, and it supports up to 3 outputs. The operating temperature range is from 0°C to 70°C.
Key specifications include an efficiency of 45%, adjustable output, and remote sense capabilities. It is approved by CE, CSA, and UL, and complies with safety standards like 60950-1 and 62368-1. The dimensions are 279.4mm in length, 123.7mm in width, and 83.3mm in height.
The output voltage is -15 VDC.
The input voltage range is 87 to 264 VAC.
The power rating is 75W.
The operating temperature range is 0°C to 50°C.
The efficiency is 45%.
It uses chassis mount.
It has CE, CSA, UL approvals.
