| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
516 pcs
|
516 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Accuracy | |
| Automotive Grade | |
| DC Resistance (DCR) | |
| Height | |
| Impedance | |
| Industrial Grade | |
| Lead Spacing | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Rated Current | |
| Storage Temperature | |
| Tape & Reel |

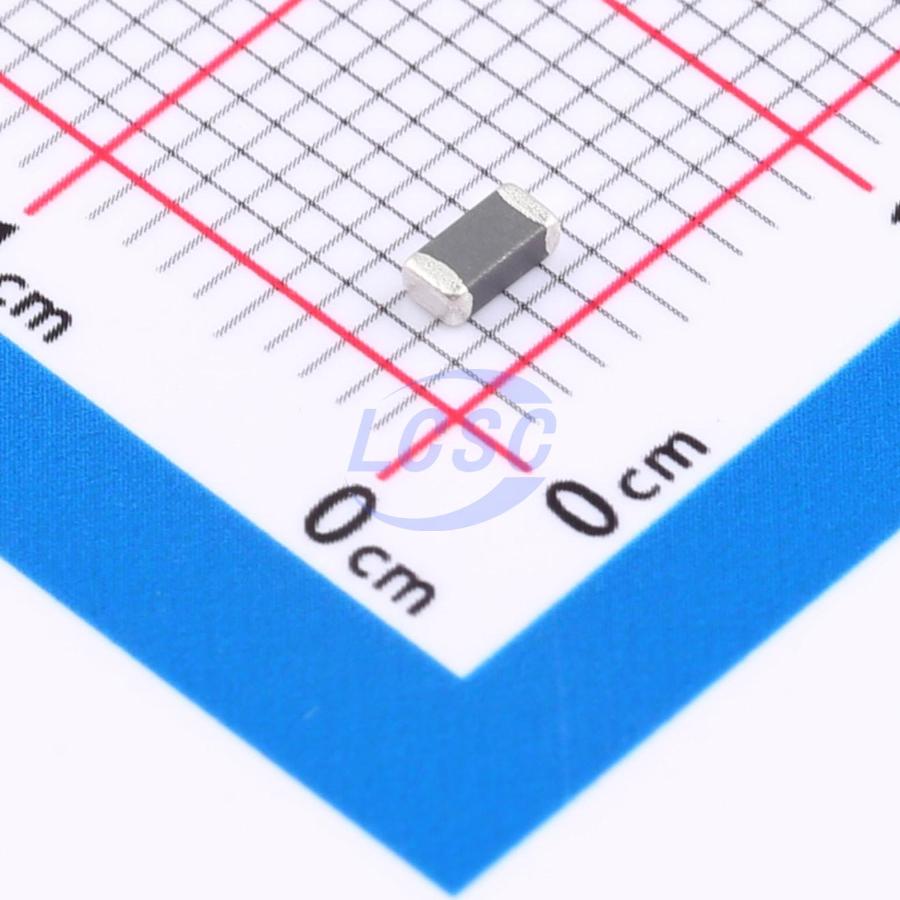

The TAI-TECH HCB3216KF-121T60 is a chip bead designed for filtering and magnetic applications. It offers an impedance of 120Ω at 100MHz with a tolerance of ±25% and a typical DC resistance of 18mΩ. This component is rated for a continuous current of 6A.
Constructed with a ferrite material, the HCB3216KF-121T60 operates within a temperature range of -55°C to +125°C, making it suitable for various environmental conditions. Its dimensions are 3.20 x 1.60mm, and it is designed for SMT (Surface Mount Technology) installation, fitting into a 1206 package size.
This chip bead is part of the HCB series and is suitable for general applications requiring electromagnetic interference suppression or signal filtering. Its compact size and SMT compatibility facilitate integration into modern electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.03 | $0.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance of the HCB3216KF-121T60 is 120Ω at 100MHz.
The rated current for this chip bead is 6A.
The typical DC resistance is 18mΩ.
The operating temperature range is -55°C to +125°C.
The chip bead comes in a 1206 package size.
It uses SMT (Surface Mount Technology) mounting.
