| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Stability | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

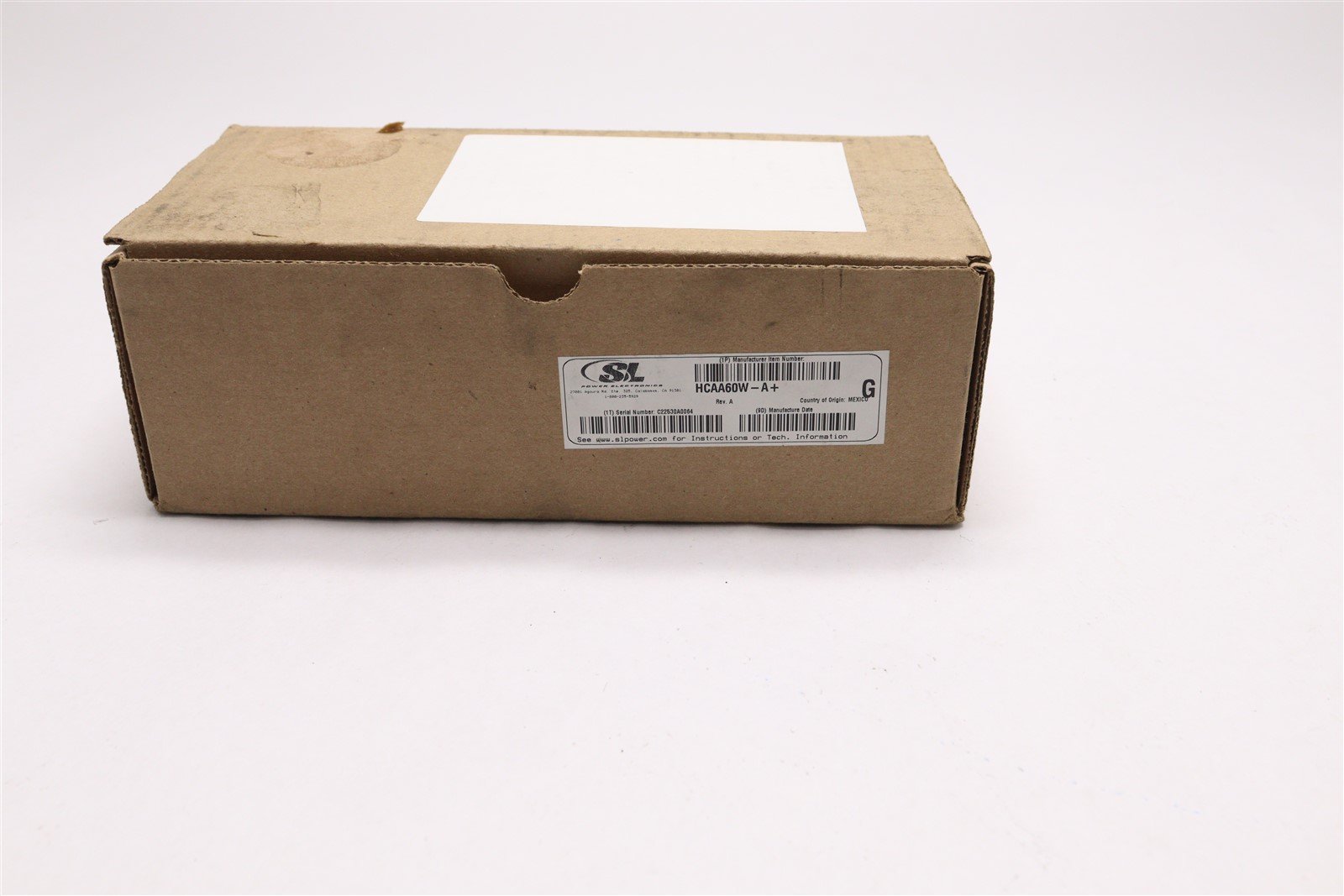

The SL Power Electronics HCAA60W-A+G is a versatile AC/DC converter designed for ITE (Commercial) applications. This linear power supply features a chassis mount for easy integration into systems.
Key electrical specifications include a power output of 54W, with a voltage range of -12V to 15V and a current rating of 1A. It supports universal AC input (100-240 Vac) and operates across a wide frequency range of 47-63Hz. The unit offers adjustable output with a minimum range of ±5% and includes features like remote sensing and logic inhibit for enhanced control.
Designed for reliability, the HCAA60W-A+G operates within a temperature range of 0°C to 70°C with derating. It boasts high efficiency (55% for 12/15V units) and includes automatic current limit/foldback for short circuit protection. Overvoltage protection is built-in for 5V models and optional for others. The power supply meets stringent safety standards, approved by CE, cURus, and TUV, and exceeds FCC and CISPR22 Class B conducted emissions standards.
Mechanical dimensions are 228.6mm in length, 124.0mm in width, and 69.9mm in height. The internal components, including electrolytic capacitors, are rated at 105°C, and the transformer insulation meets Class F (155°C), contributing to a typical MTBF of over 200,000 hours.
The operating temperature range is 0°C to 70°C, with derating.
It uses chassis mount.
Yes, it is RoHS3 Compliant.
Key features include adjustable output, remote sense, and universal input.
The power output is 54W.
The output voltage range is -12V to 15V.
The output current is 1A.
