| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90 pcs
|
90 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Halogen Free | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output 3 Voltage | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

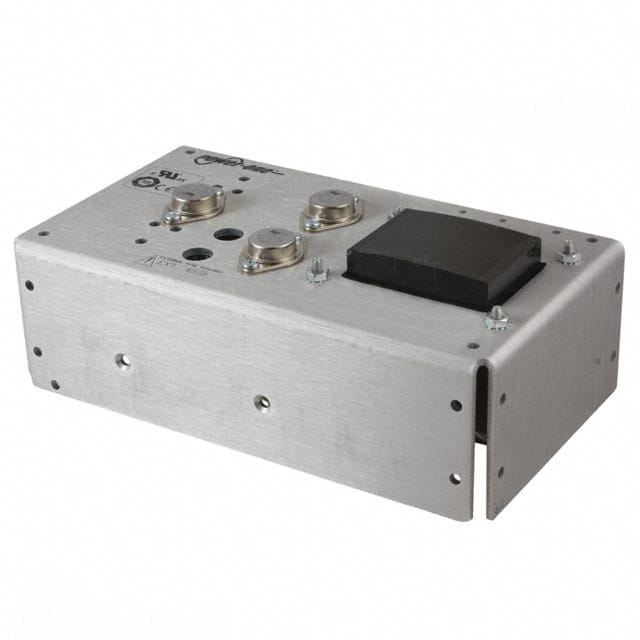

The Bel Power Solutions HCAA-60W-AG is a linear AC/DC power supply designed for commercial ITE applications. It delivers a total power output of 54 watts across three regulated output channels: 5V at 6A, 12V at 1A, and -12V at 1A. The converter accepts a universal input voltage range of 90-264 VAC at 47-63 Hz and operates with an efficiency of 45%.
The unit features chassis mount packaging and includes adjustable output and remote sense functionality. The operating temperature range is 0°C to 50°C. The supply measures 228.6 mm in length, 123.7 mm in width, and 83.3 mm in height. It carries safety approvals from CE, CSA, and UL, meeting standards 60950-1 and 62368-1. Designed for reliable system power delivery where linear regulation is preferred for low-noise applications.
Output 1: 5V at 6A. Output 2: 12V at 1A. Output 3: -12V at 1A. Total power is 54W.
The input voltage range is 90-264 VAC at 47-63 Hz.
The operating temperature range is 0°C to 50°C.
The datasheet states the product is RoHS compliant, but this is not part-verified. The compliance status is listed as RoHS3 compliant and REACH unaffected with MSL 1 (Unlimited).
The converter is designed for chassis mount installation.
Yes, the features include adjustable output and remote sense.
Length: 228.6 mm (9.00 inches), Width: 123.7 mm (4.87 inches), Height: 83.3 mm (3.28 inches).
