| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21,150 pcs
|
21150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

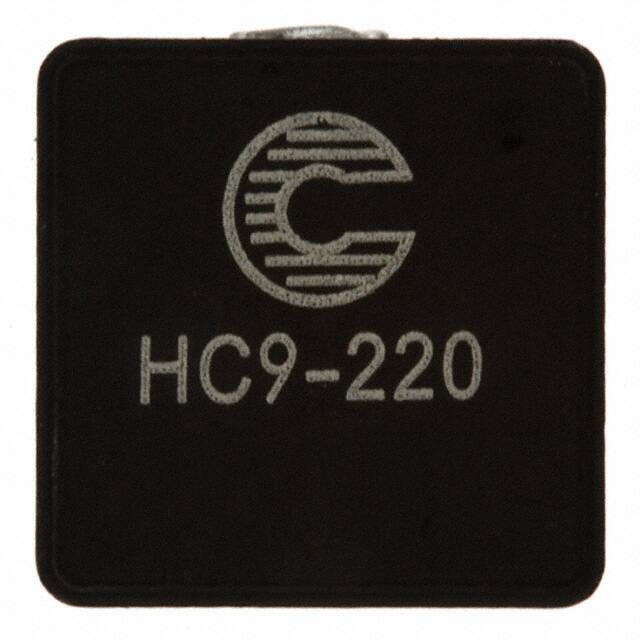

The HC9-220-R is a fixed inductor manufactured by Eaton - Electronics Division. It is a drum core, wirewound type inductor with an inductance of 22µH and a tolerance of ±15%. The component is rated for a continuous current of 6.3A and has a maximum DC resistance of 25.7mOhm. A typical saturation current of 8.7A is specified.
The inductor is unshielded and designed for surface mount mounting. It comes in a nonstandard package with dimensions of 14.10mm in length, 13.10mm in width, and 7.50mm in height. The core material is iron powder. The operating temperature range is -40°C to 155°C, making it suitable for a wide range of environments.
This component is intended for use in power supply and filtering applications where a moderate inductance value and high current handling are required. The wirewound construction on a drum core provides stable inductance characteristics.
The inductance is 22µH with a tolerance of ±15%.
The continuous current rating is 6.3A. The typical saturation current is 8.7A.
The maximum DC resistance is 25.7mOhm.
The operating temperature range is -40°C to 155°C.
The package is nonstandard with dimensions of 14.10mm length, 13.10mm width, and 7.50mm height.
No, it is an unshielded inductor.
The core material is iron powder.
