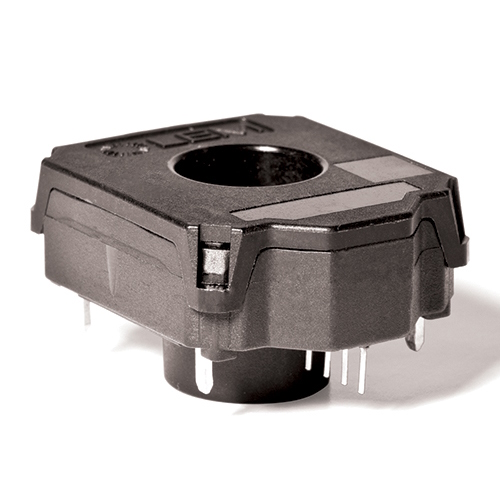

HC5FW 800-S/SP1 The LEM HC5FW 800-S/SP1 is a PCB mount automotive current sensor utilizing Hall Effect technology. It offers a primary current measuring range up to +/-100A and operates from a +5V DC supply.
Mfr Part #:

HC5FW 800-S/SP1

Available from 1 distributors
Mfr Name: LEM USA Inc.
LEM USA Inc.
The LEM HC5FW 800-S/SP1 is a PCB mount automotive current sensor utilizing Hall Effect technology. It offers a primary current measuring range up to +/-100A and operates from a +5V DC supply.
✓ Total Stock: 34 pcs
$ Price Range: $1.50

HC5FW 800-S/SP1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
34 pcs
On Request
34 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HC5FW 800-S/SP1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Operating Temperature
SVHC Present
View Similar Products (0)

HC5FW 800-S/SP1 Description

Short technical summary and product information.

The HC5FW 800-S/SP1 from LEM is an automotive-grade current sensor designed for high-compactness applications. It employs open-loop Hall-based technology to measure primary current flowing through an integrated busbar, providing an output voltage proportional to the current while ensuring galvanic isolation.



This sensor is suitable for mid to high power motor control applications, particularly in automotive xEVs' traction inverters. It features a primary current measuring range of up to +/-100A and operates with a unipolar +5V DC power supply. The operating temperature range is from -40°C to +125°C.



The HC5 series sensors are engineered for precision, utilizing a calibrated magnetic core and a proprietary ASIC developed by LEM. This results in outstanding performance, accuracy, and reliability for demanding automotive applications such as Electrical Power Steering, Starter Generators, and Converters. The PCB mounting type makes integration straightforward in inverter configurations.

HC5FW 800-S/SP1 Quick Information

Product Type: Current Sensor
Series: HC5
Canonical Name: HC5FW 800-S/SP1 Automotive Current Sensor
Subcategory: Hall Effect Sensor

HC5FW 800-S/SP1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HC5FW 800-S/SP1 Estimated Pricing

Qty Low High
1+ $1.50 $1.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

HC5FW 800-S/SP1 Features

  • Open-loop Hall Effect current sensor.
  • Measures up to +/-100A primary current.
  • Operates on a +5V DC unipolar supply.
  • Wide -40C to +125C operating temperature.
  • Designed for PCB mounting.

HC5FW 800-S/SP1 Applications

  • Automotive xEV traction inverters.
  • Electrical Power Steering systems.
  • Starter generator applications.
  • Converter modules.

HC5FW 800-S/SP1 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the primary current measuring range of the HC5FW 800-S/SP1?

The primary current measuring range is up to ±100 A.

What is the operating temperature range for this current sensor?

The operating temperature range is -40 °C to +125 °C.

What is the required power supply voltage for the HC5FW 800-S/SP1?

It requires a unipolar +5 V DC power supply.

What type of mounting is supported by the HC5FW 800-S/SP1?

This sensor is designed for PCB mounting.
