| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Operating Temperature | |
| Output Type | |
| Supply Voltage | |
| Technology |

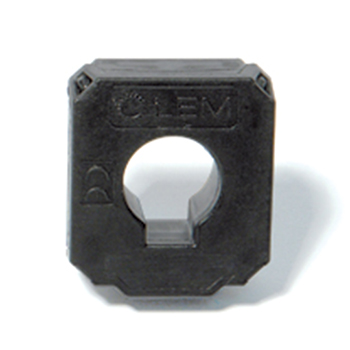

The LEM USA Inc. HC5F200-S is an open-loop Hall Effect Current Sensor suitable for electronic measurement of DC, AC, and pulsed currents. It provides galvanic isolation between the primary and secondary circuits, making it ideal for applications requiring precise current monitoring.
Key electrical specifications include a measuring range of 200-900A, with a primary current measuring range up to ±200A. The sensor operates on a unipolar +5V DC power supply and provides an instantaneous output signal. Its technology is based on the Hall effect, offering a reliable method for non-intrusive current sensing.
This sensor is designed for a wide operating temperature range from -40°C. The accuracy is rated at 2%, and it features a secondary signal output of 2V. The HC5F__-S series is part of LEM's motor driver sensor line, often used in automotive applications such as electrical power steering, starter generators, and converters.
Safety and quality approvals include CE, RoHS, and UL. The sensor utilizes open-loop transducer technology and is suitable for low-voltage applications. Its design ensures high-speed performance for dynamic current measurements.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The measuring range is 200-900A.
It requires a unipolar 5V DC supply.
The operating temperature range is -40°C.
It uses Open Loop Hall Effect technology.
The accuracy is 2%.
