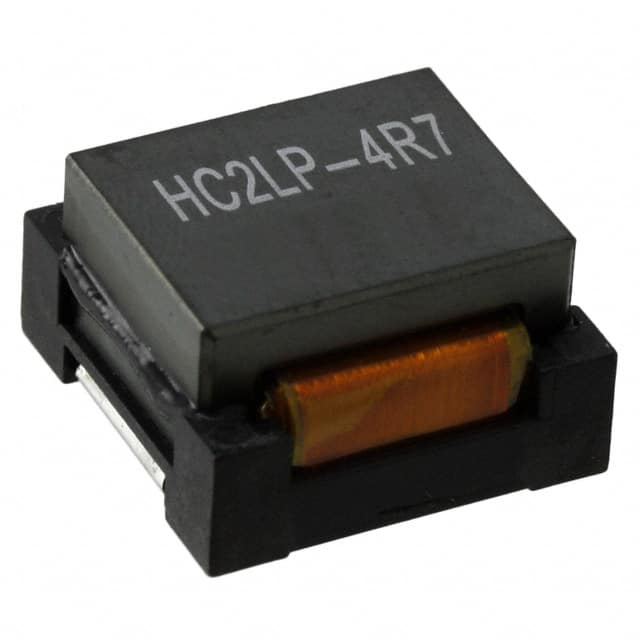

HC2LP-4R7-R Eaton HC2LP-4R7-R is a 4.7 µH unshielded wirewound inductor rated for 17 A with a maximum DCR of 4.6 mOhm, in a surface mount package.
Mfr Part #:

HC2LP-4R7-R

Available from 1 distributors
Mfr Name: Eaton - Electronics Division
Eaton - Electronics Division
Eaton HC2LP-4R7-R is a 4.7 µH unshielded wirewound inductor rated for 17 A with a maximum DCR of 4.6 mOhm, in a surface mount package.
✓ Total Stock: 13 pcs

HC2LP-4R7-R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
13 pcs
On Request
13 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HC2LP-4R7-R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Shielding
Tolerance
Type
Width
View Similar Products (0)

HC2LP-4R7-R Description

Short technical summary and product information.

The Eaton HC2LP-4R7-R is a fixed inductor in the HC2LP series, featuring a ferrite core and wirewound drum core construction. It offers an inductance of 4.7 µH with a tolerance of ±20%.



Designed for high current applications, this inductor has a DC current rating of 17 A and a saturation current of 21.25 A. The maximum DC resistance is 4.6 mOhm, supporting low power loss in power circuits.



The component is unshielded and designed for surface mount assembly. It measures 19.20 mm x 19.20 mm with a height of 11.18 mm, and operates over a temperature range of -40°C to 85°C.

HC2LP-4R7-R Quick Information

Product Type: Fixed Inductor
Series: HC2LP
Canonical Name: Eaton HC2LP-4R7-R 4.7 µH Unshielded Wirewound Inductor
Subcategory: Drum Core, Wirewound

HC2LP-4R7-R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HC2LP-4R7-R Features

  • Drum core wirewound ferrite inductor.
  • Inductance 4.7 µH with ±20% tolerance.
  • Rated current 17 A, saturation 21.25 A.
  • Low DCR maximum of 4.6 mOhm.
  • Surface mount package for automated assembly.

HC2LP-4R7-R Applications

  • Power supply filtering and energy storage.
  • DC-DC converter output inductor applications.
  • High current switching regulator circuits.
  • Low power loss power management designs.

HC2LP-4R7-R FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance of the HC2LP-4R7-R?

4.7 µH with ±20% tolerance.

What is the current rating?

17 A DC rated current, with a saturation current of 21.25 A.

What is the maximum DC resistance?

4.6 mOhm maximum.

Is the shield shielded or unshielded?

Unshielded.

What is the operating temperature range?

-40°C to 85°C.

What is the package size?

19.20 mm x 19.20 mm x 11.18 mm, surface mount.
