| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,250 pcs
|
1250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

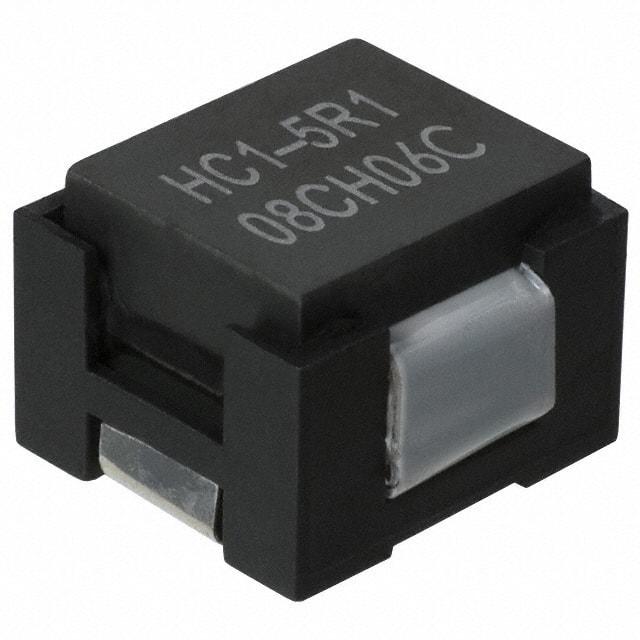

The Eaton HC1-5R1-R is a fixed inductor from the HC1 series, featuring a drum core wirewound construction with a ferrite core. It offers an inductance of 5.1 µH with a tolerance of ±15%. The component is rated for a continuous current of 12.79 A and has a saturation current of 11.2 A (condition unspecified). DC resistance is a maximum of 5.7 mOhm, minimizing power dissipation.
This inductor is unshielded and designed for surface mount mounting in a nonstandard package measuring 13.00 mm x 13.00 mm x 10.00 mm. It operates over a temperature range of -40°C to 125°C, making it suitable for a variety of environments. The part is listed as RoHS3 compliant, though this status is unverified.
Typical applications include power supply filtering, DC-DC converter output stages, and other high current inductor requirements. The unshielded design may require attention to electromagnetic interference in sensitive circuits. Engineers should verify the footprint and saturation current conditions from the manufacturer or distributor datasheet.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.81 | $4.81 |
| 10+ | $4.15 | $4.15 |
| 30+ | $3.75 | $3.75 |
| 100+ | $3.41 | $3.41 |
| 1,000+ | $3.33 | $3.33 |
| 10,000+ | $3.13 | $3.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5.1 µH.
±15%.
12.79 A.
5.7 mOhm maximum.
No, it is unshielded.
-40°C to 125°C.
Nonstandard surface mount package.
