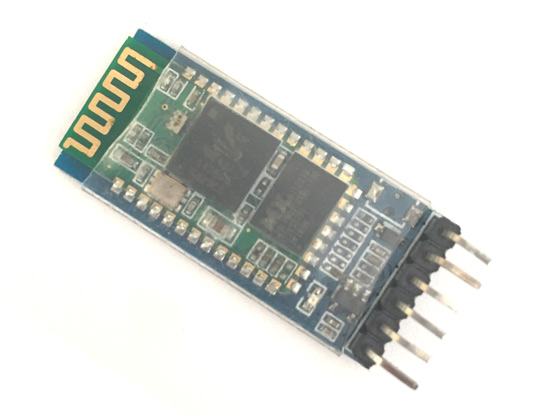

HC05 The HC-05 is a popular Bluetooth module that adds two-way wireless functionality to projects. It operates at 4V to 6V and has a range of up to 100 meters.
Mfr Part #:

HC05

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The HC-05 is a popular Bluetooth module that adds two-way wireless functionality to projects. It operates at 4V to 6V and has a range of up to 100 meters.
✓ Total Stock: 602,851 pcs
$ Price Range: $12.91

HC05 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
602,667 pcs
On Request
602667 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
184 pcs
On Request
184 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HC05 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Operating Voltage
Protocol
Range °
Storage Temperature
Tape & Reel
View Similar Products (0)

HC05 Description

Short technical summary and product information.

The HC-05 is a widely used Bluetooth module designed to integrate full-duplex wireless communication into various electronic projects. It operates with a supply voltage typically around +5V, ranging from 4V to 6V, and consumes approximately 30mA of current.



This module supports serial communication via USART and is TTL compatible, making it easy to interface with microcontrollers like Arduino. It follows the IEEE 802.15.1 standard and utilizes Frequency-Hopping Spread Spectrum (FHSS) technology for reliable wireless data transfer. The HC-05 can function in Master, Slave, or Master/Slave modes, offering flexibility in network configuration.



Key default settings include a Bluetooth name of "HC-05", a password of "1234" or "0000", and a default communication mode of Slave. The module supports multiple baud rates for both Data Mode (9600 bps) and Command Mode (38400 bps), with a wider range of supported rates available for configuration.



It is suitable for applications requiring data transfer between microcontrollers, or between a microcontroller and devices like laptops or mobile phones. However, it is not intended for high-bandwidth multimedia streaming.

HC05 Quick Information

Product Type: Bluetooth Module
Canonical Name: HC-05 Bluetooth Module

HC05 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HC05 Estimated Pricing

Qty Low High
1+ $12.91 $12.91

Estimated market price range - modelled values for guidance only, not live distributor offers.

HC05 Features

  • Adds two-way wireless Bluetooth functionality.
  • Operates from 4V to 6V supply voltage.
  • Provides a wireless range of up to 100 meters.
  • Supports Master, Slave, and Master/Slave modes.
  • TTL compatible serial communication interface.

HC05 Applications

  • Wireless communication between microcontrollers.
  • Interfacing with laptops and mobile phones.
  • Robotic control systems.
  • Data logging applications.
  • Remote sensor networks.

HC05 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the HC-05 Bluetooth Module?

The HC-05 Bluetooth Module operates from 4V to 6V, typically using a +5V supply.

What is the typical operating current of the HC-05 module?

The HC-05 module has an operating current of 30mA.

What is the wireless range of the HC-05 Bluetooth Module?

The HC-05 Bluetooth Module has a wireless range of less than 100 meters.

What baud rate is used for Data Mode on the HC-05?

The default baud rate for Data Mode on the HC-05 is 9600 bps.

What baud rate is used for Command Mode on the HC-05?

The default baud rate for Command Mode on the HC-05 is 38400 bps.

Can the HC-05 module operate as a master or slave device?

Yes, the HC-05 can operate in Master, Slave, or Master/Slave modes.

What is the default Bluetooth name and password for the HC-05?

The default Bluetooth name is 'HC-05' and the default password is '1234' or '0000'.
