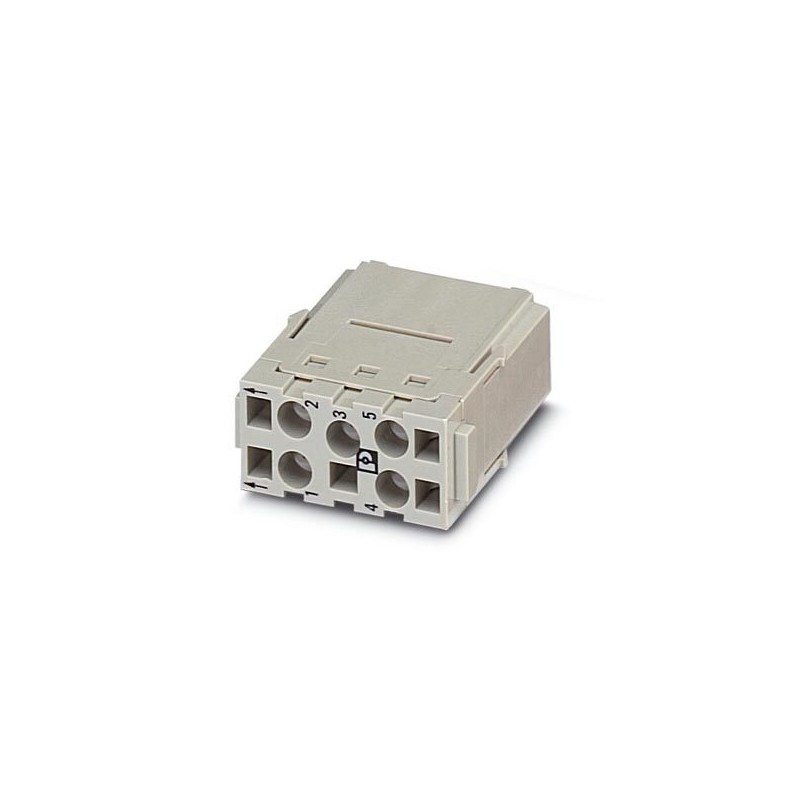

HC-M-05-MOD-STZ The Phoenix Contact HC-M-05-MOD-STZ is a contact insert module with a rated voltage of 400V and a rated current of 16A. It utilizes a spring-cage connection method.
Mfr Part #:

HC-M-05-MOD-STZ

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
The Phoenix Contact HC-M-05-MOD-STZ is a contact insert module with a rated voltage of 400V and a rated current of 16A. It utilizes a spring-cage connection method.
✓ Total Stock: 6 pcs
$ Price Range: $1.00

HC-M-05-MOD-STZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HC-M-05-MOD-STZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connection Method
Contact Material
Halogen Free
Height
Length
Rated Current
Width
View Similar Products (0)

HC-M-05-MOD-STZ Description

Short technical summary and product information.

The Phoenix Contact HC-M-05-MOD-STZ is a contact insert module designed for industrial plug-in connectors and interfaces. It features a robust construction with a copper alloy contact material and silver-plated contacts.



This module operates with a rated voltage of 400V and a rated current of 16A, making it suitable for demanding applications. The connection method is spring-cage, supporting conductor cross-sections from 0.14 mm² to 2.5 mm² (without ferrule) and 0.14 mm² to 1.5 mm² (with ferrule), with AWG compatibility from 26 to 14.



Environmental specifications include an operating temperature range of -40°C to 125°C and a flammability rating of UL 94 V0. The module has a pollution degree of 3 and an overvoltage category of III. It requires a minimum housing height of 52 mm and is designed for a minimum of 500 insertion/withdrawal cycles.



Compliance includes China RoHS with an unlimited environmentally friendly use period (EFUP-e) and Halogen Free status. The module is designed for use with HEAVYCON housing types B6 to B48, requiring an HC-M-MHR hinged retaining frame.

HC-M-05-MOD-STZ Quick Information

Product Type: Contact Insert Module
Series: HC-M-05
Canonical Name: Phoenix Contact HC-M-05-MOD-STZ Contact Insert Module
Subcategory: Heavy Duty Connector Inserts, Modules

HC-M-05-MOD-STZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HC-M-05-MOD-STZ Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

HC-M-05-MOD-STZ Features

  • Rated voltage of 400V.
  • Rated current of 16A.
  • Spring-cage connection method.
  • Wide conductor cross-section support.
  • Operating temperature from -40°C to 125°C.

HC-M-05-MOD-STZ Applications

  • Suitable for industrial plug-in connectors.
  • Used in heavy-duty connector systems.
  • Ideal for applications requiring high voltage.
  • Designed for reliable electrical connections.

HC-M-05-MOD-STZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the rated voltage for the HC-M-05-MOD-STZ contact insert module?

The rated voltage for the HC-M-05-MOD-STZ is 400 V (III/3).

What is the rated current of the HC-M-05-MOD-STZ?

The rated current for the HC-M-05-MOD-STZ is 16 A.

What type of connection does the HC-M-05-MOD-STZ use?

The HC-M-05-MOD-STZ uses a spring-cage connection method.

What is the operating temperature range for this contact insert module?

The operating temperature range for the HC-M-05-MOD-STZ is -40 °C to 125 °C.

What conductor cross-section sizes can be used with the HC-M-05-MOD-STZ?

The HC-M-05-MOD-STZ supports conductor cross-sections from 0.14 mm² to 1.5 mm² with ferrule, and 0.14 mm² to 2.5 mm² without ferrule.

What is the flammability rating of the HC-M-05-MOD-STZ?

The flammability rating according to UL 94 is V0.

What is the insertion/withdrawal cycle rating for this module?

The HC-M-05-MOD-STZ has an insertion/withdrawal cycle rating of at least 500.
