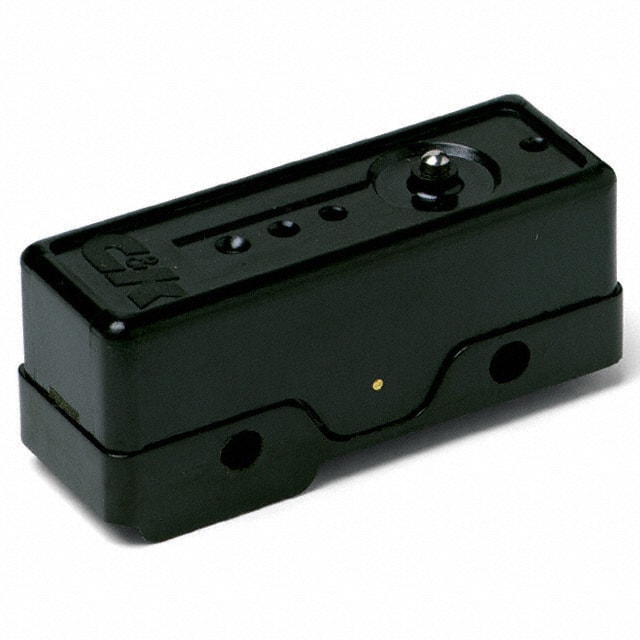

HBS2KGB4SP011C The C&K Components HBS2KGB4SP011C is a SPDT limit switch designed for robust operation. It offers a 20A current rating and 125V voltage rating.
Mfr Part #:

HBS2KGB4SP011C

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components HBS2KGB4SP011C is a SPDT limit switch designed for robust operation. It offers a 20A current rating and 125V voltage rating.
✓ Total Stock: 50 pcs
$ Price Range: $0.75

HBS2KGB4SP011C Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HBS2KGB4SP011C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Circuit
Current Rating (Amps)
Differential Travel
Ingress Protection
Lead Style
Mounting Type
Operating Force
Operating Temperature
Overtravel
Pretravel
Release Force
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

HBS2KGB4SP011C Description

Short technical summary and product information.

This C&K Components HBS2KGB4SP011C is a single pole double throw (SPDT) limit switch. It is rated for a 20A current at 125V AC and 500mA DC.



The switch features a chassis mount type and solder lug termination style, making it suitable for various industrial applications. It operates within a wide temperature range of -55°C to 150°C and has an ingress protection rating of IP65, indicating dust-tight and water-resistant capabilities.



Key mechanical specifications include an operating force of 510gf, a release force of 113gf, and specific pretravel, overtravel, and differential travel values. The actuator type is a round pin plunger.

HBS2KGB4SP011C Quick Information

Product Type: Limit Switch
Canonical Name: C&K Components HBS2KGB4SP011C SPDT Limit Switch
Subcategory: Limit Switch

HBS2KGB4SP011C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HBS2KGB4SP011C Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

HBS2KGB4SP011C Features

  • SPDT circuit for versatile switching.
  • High 20A current rating at 125V AC.
  • Wide -55°C to 150°C operating temperature.
  • IP65 rated for dust and water resistance.
  • Chassis mount with solder lug termination.

HBS2KGB4SP011C Applications

  • Suitable for industrial control panels.
  • Used in harsh environmental conditions.
  • Ideal for power switching applications.
  • Reliable for automated machinery.

HBS2KGB4SP011C FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for this switch?

The operating temperature range is -55°C to 150°C.

What is the current rating of the C&K Components HBS2KGB4SP011C?

The current rating is 20A for AC and 500mA for DC.

What type of mounting does this limit switch use?

This limit switch uses chassis mount.

What is the termination style for this switch?

The termination style is solder lug.

What is the ingress protection rating?

The ingress protection rating is IP65.
