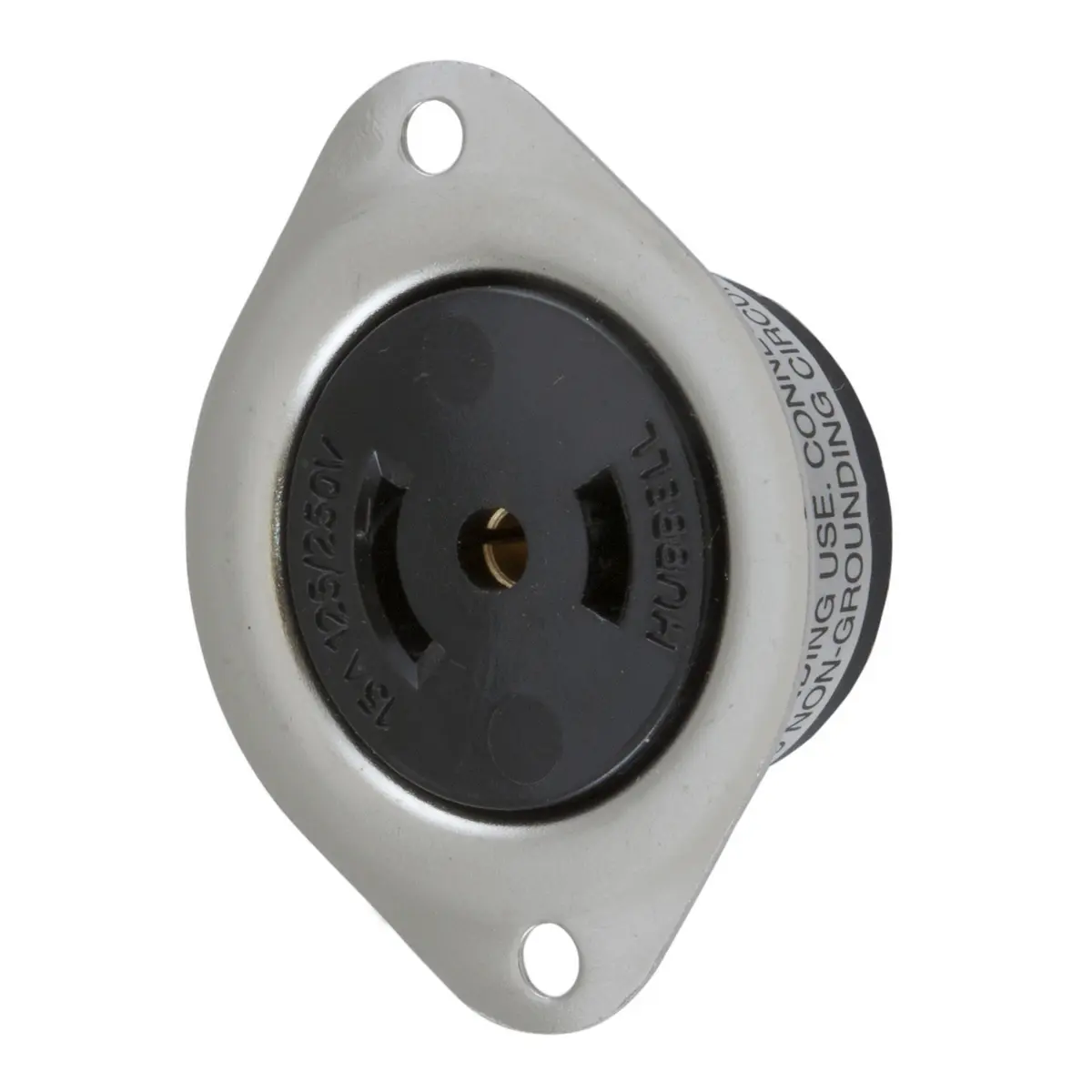

The Hubbell HBL7487 is an industrial flanged receptacle from the Midget Twist-Lock series. This component is designed for AC power applications, featuring a robust construction with a stainless steel flange and a high heat-resistant phenolic base.
Key electrical specifications include a current rating of 15A and a voltage rating of 125/250V AC. It is configured as a 3-pole, 3-wire, non-grounding device with a NEMA ML-3R configuration. The receptacle is certified for current interrupting at its full rated current and can withstand a minimum dielectric voltage of 2000V.
Mechanically, it accommodates wire sizes down to #18 AWG and utilizes screw mounting for secure installation. The operating temperature range is from -40°C to a maximum continuous of 75°C without impact. Environmental considerations include a flammability rating of HB or better per UL94/CSA 22.2 No.0.17 and IP20 suitability for moisture resistance.
This flanged receptacle is suitable for industrial environments where reliable power connections are essential. Its durable materials and adherence to safety standards make it a dependable choice for various applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15A.
125/250V.
Screw mount.
NEMA ML-3R.
-40°C to 75°C (minimum without impact, maximum continuous).
HB per UL94/CSA 22.2 No.0.17.
IP20.
