| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current Rating | |
| Mounting Type | |
| Voltage Rating |

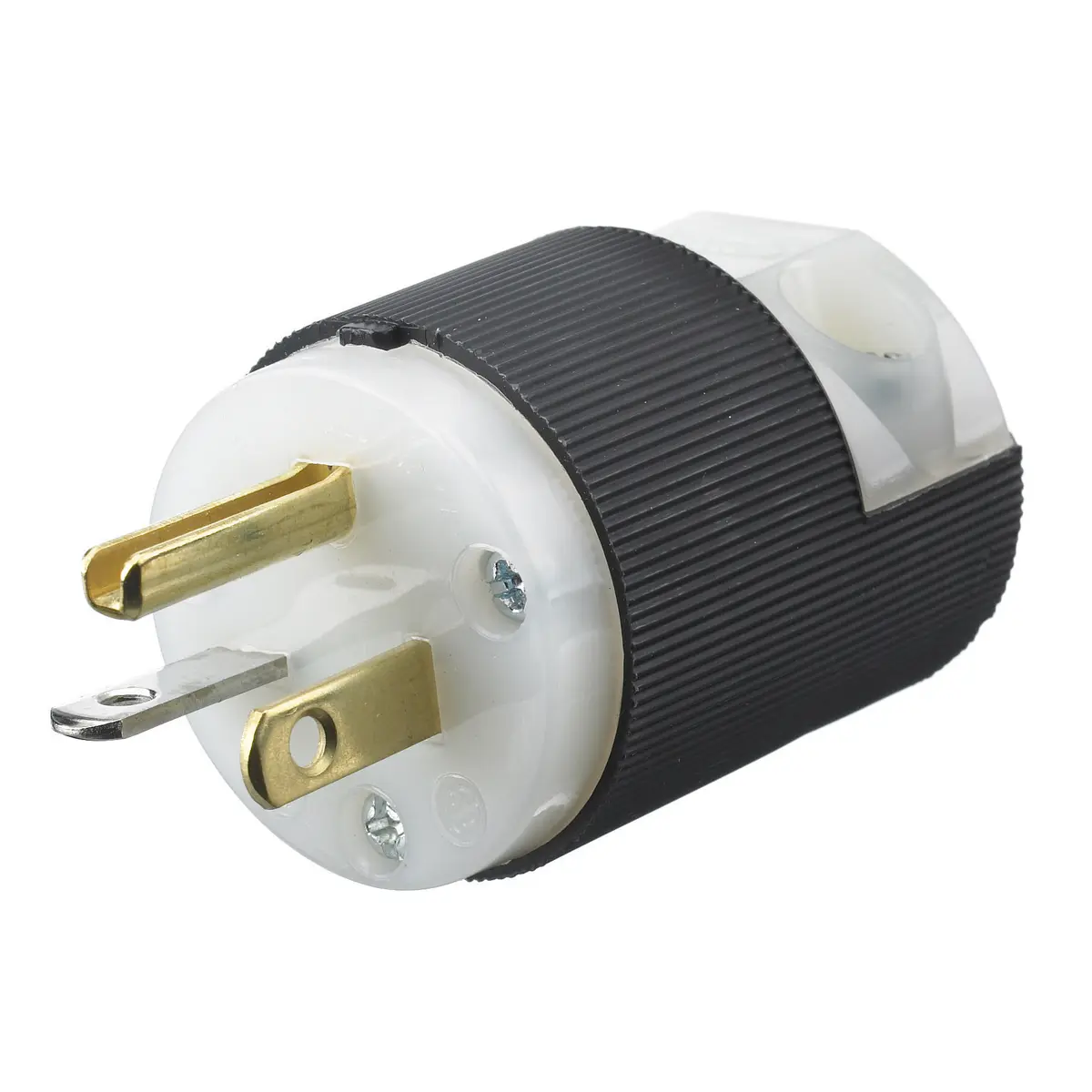

The Hubbell HBL5366C is a heavy-duty, industrial/commercial grade straight blade male plug. It is rated for 20 Amperes and 125 Volts, with a 2-pole, 3-wire grounding configuration.
Constructed with a ribbed nylon housing that offers resistance to impact and chemicals, this plug is built for durability. It features a VARI-SIZE adjustable cord clamp for accommodating various cable sizes and fast lead assembly screws for ease of installation. The beveled housing design helps prevent snagging during use.
Environmental and safety specifications include a UL 94 HB flammability rating and an IP20 suitability rating. The operating temperature range is from -40°C to a maximum continuous 75°C. The plug is designed to withstand a minimum dielectric voltage of 2,000V and is certified for current interrupting at its full rated current.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HBL5366C is rated for 20A continuous.
125V AC.
Straight mounting.
NEMA 5-20P, 2-pole 3-wire.
-40°C to 75°C (continuous).
2000V minimum.
Accepts #18-10 AWG stranded wire.
