| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Termination Style | |
| Voltage Rating |

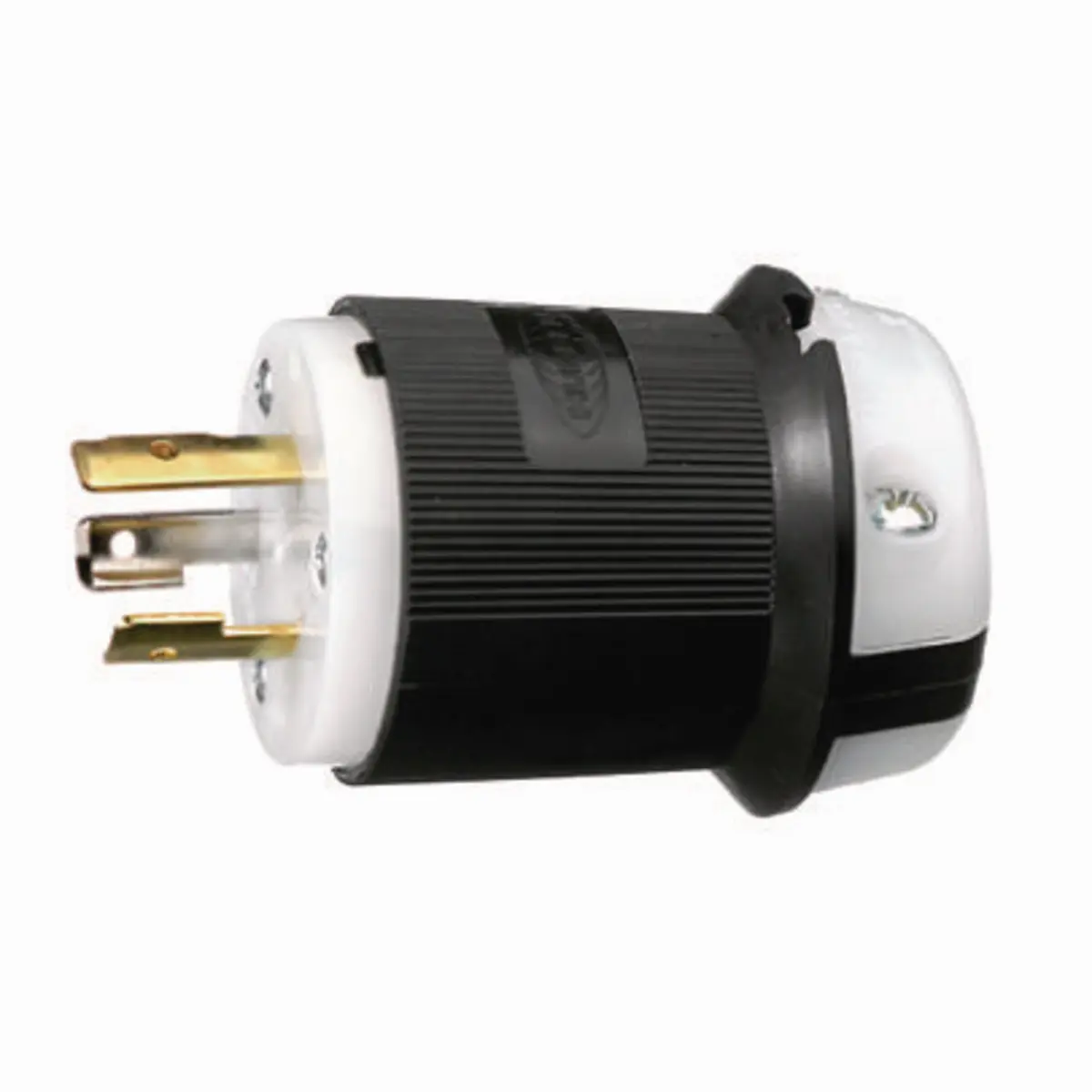

The Hubbell HBL2311 is an industrial-grade male plug designed for AC power applications. It operates at 20A and 125V, featuring a NEMA L5-20P configuration for secure locking connections.
Constructed from durable nylon, the HBL2311 offers resistance to impact and chemicals, making it suitable for demanding environments. The plug incorporates a superior cord grip design to prevent strain on terminations and a clear, funnel-shaped wire entry for easy termination. An integral dust shield protects the wiring chamber from contaminants.
This plug is rated for a continuous operating temperature of up to 75°C and a minimum of -40°C. It is certified for current interrupting at its full rated current and can withstand a dielectric voltage of 2,000V minimum. The flammability rating is HB or better per UL94.
With its robust construction and reliable performance, the HBL2311 is well-suited for industrial settings and applications requiring secure, high-current connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Hubbell HBL2311 plug has a current rating of 20A and a voltage rating of 125V.
The HBL2311 plug uses the NEMA L5-20P configuration.
The HBL2311 plug features screw terminal connections.
The Hubbell HBL2311 plug is constructed from nylon.
The HBL2311 plug has an operating temperature range of -40°C to 75°C.
Yes, the HBL2311 plug is certified for current interrupting at its full rated current.
