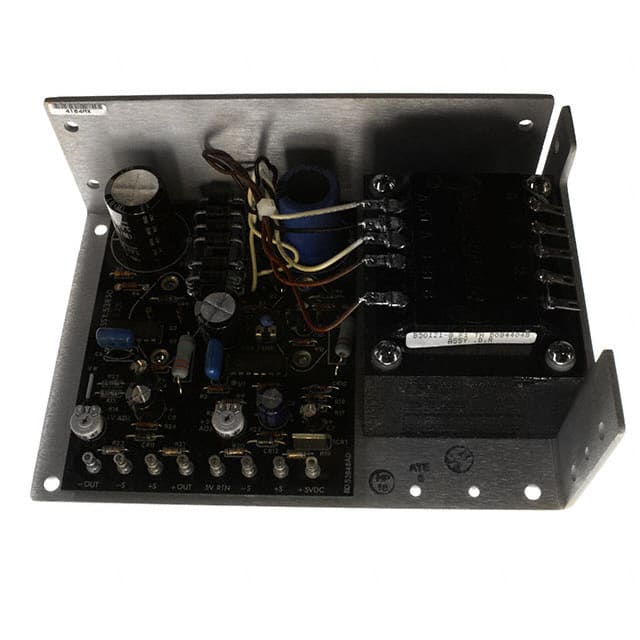

The Bel Power Solutions HBB512-AG is a linear AC DC converter designed for ITE (Commercial) applications. It provides a 12V output voltage with a current rating of 1.25A, delivering up to 30W of power.
Key features include adjustable output voltage and remote sense functionality, allowing for greater control and accuracy in power delivery. The unit operates within a temperature range of 0°C to 50°C and has an efficiency of 45%. It is designed for chassis mounting.
With a stability of ±0.05% for 24 hours after warmup and a line/load regulation of ±0.05%, this converter ensures reliable performance. It also includes automatic current limit/foldback for short circuit protection and built-in overvoltage protection on 5V models, though this specific model's overvoltage protection details are not fully specified here.
The dimensions of the unit are 177.8mm x 123.7mm x 74.9mm. It meets industry standards and is suitable for various commercial applications requiring a stable and adjustable DC power source.
The HBB512-AG provides a 12V output voltage with a current rating of 1.25A, delivering up to 30W of power.
The HBB512-AG is a linear AC DC converter.
The HBB512-AG is designed for chassis mounting.
The operating temperature range for the HBB512-AG is 0°C to 50°C.
Key features include adjustable output voltage, remote sense capability, and automatic current limit/foldback for short circuit protection.
The efficiency of the HBB512-AG is 45%.
The Mean Time Between Failures (MTBF) for most units is 200,000+ hours per MIL-HDBK-217D.
