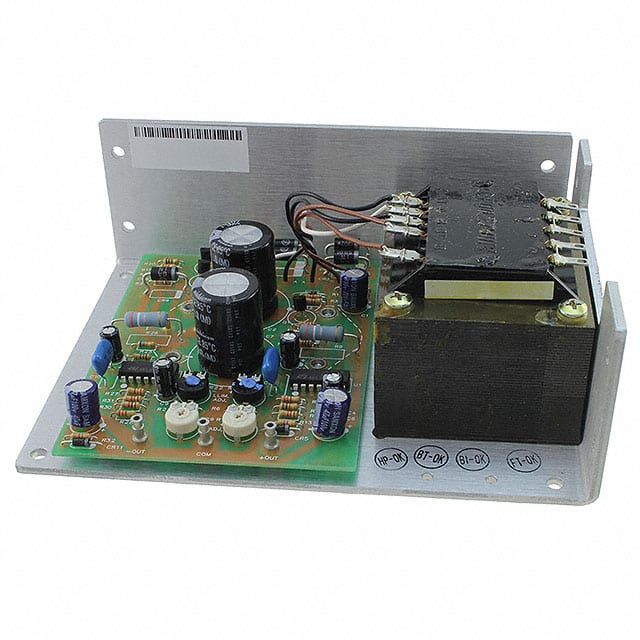

The Bel Power Solutions HBB24-1.2-AG is a linear AC-DC power supply designed for chassis mounting. It provides a power output of 58W, with a wide input voltage range of 87 to 264 VAC and selectable output voltages from 5 to 48 VDC.
This converter features convection cooling and is suitable for ITE (Commercial) applications. Key specifications include an efficiency of 60%, adjustable output, and remote sense capabilities. The dimensions are 177.8mm x 123.7mm x 74.9mm.
Safety standards include 62368, with approvals such as CB, CE, CSA, Nemko, and UL. The unit is RoHS3 compliant and has an MSL rating of 1.
The HBB24-1.2-AG is a linear AC-DC converter.
The HBB24-1.2-AG has a power output of 58W.
The input voltage range is 87 to 264 VAC.
The output voltage can be adjusted from 5 to 48 VDC.
It is cooled by convection.
It meets safety standard 62368 and has approvals including CB, CE, CSA, Nemko, and UL.
Yes, it is RoHS3 Compliant.
