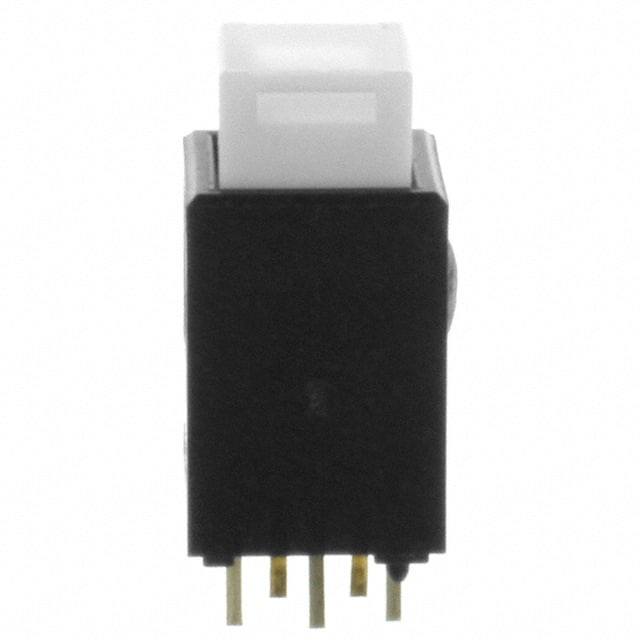

HB215SKG03CF The NKK Switches HB215SKG03CF is a pushbutton switch with a SPST-NO circuit, rated for 0.4VA and 28V. It features through-hole mounting and PC pin termination.
Mfr Part #:

HB215SKG03CF

Available from 1 distributors
Mfr Name: NKK Switches
NKK Switches
The NKK Switches HB215SKG03CF is a pushbutton switch with a SPST-NO circuit, rated for 0.4VA and 28V. It features through-hole mounting and PC pin termination.
✓ Total Stock: 2 pcs
$ Price Range: $0.75

HB215SKG03CF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HB215SKG03CF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Marking
Actuator Type
Circuit
Current Rating (Amps)
Illumination Type, Color
Illumination Voltage (Nominal)
Mounting Type
Operating Temperature
Switch Function
Termination Style
Type
Voltage Rating
View Similar Products (0)

HB215SKG03CF Description

Short technical summary and product information.

This NKK Switches HB215SKG03CF is a pushbutton switch designed for various applications. It operates within a temperature range of -25°C to 50°C and features a SPST-NO circuit configuration.



The switch has an electrical rating of 0.4VA (AC/DC) and a voltage rating of 28V. It is designed for through-hole mounting and utilizes PC pin termination style. The actuator type is a plunger for a cap, and the switch function is Off-Mom.



Illumination is provided by an LED in green/red, with a nominal voltage of 2.0 to 2.25 VDC. The switch is RoHS3 compliant, has an MSL of 1, and is REACH unaffected. The part number is HB215SKG03CF and the DK Part Number is HB215SKG03CF-ND.

HB215SKG03CF Quick Information

Product Type: Pushbutton Switch
Canonical Name: NKK Switches HB215SKG03CF Pushbutton Switch
Subcategory: Illuminated Pushbutton Switch

HB215SKG03CF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HB215SKG03CF Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

HB215SKG03CF Features

  • SPST-NO circuit configuration.
  • Rated for 0.4VA and 28V.
  • Through-hole mounting with PC pin termination.
  • LED illumination in green/red.
  • Operates from -25°C to 50°C.

HB215SKG03CF Applications

  • Suitable for general purpose switching.
  • Used in control panel interfaces.
  • Ideal for status indication circuits.
  • Applicable in low-power systems.

HB215SKG03CF FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the HB215SKG03CF switch?

The operating temperature range is -25°C to 50°C.

What is the current and voltage rating of the HB215SKG03CF pushbutton switch?

The switch is rated for 0.4VA (AC/DC) and 28V.

What type of circuit does the HB215SKG03CF switch have?

It has a SPST-NO (Single Pole Single Throw - Normally Open) circuit.

How is the HB215SKG03CF switch mounted and terminated?

It is designed for through-hole mounting and features PC pin termination.

What are the illumination specifications for the HB215SKG03CF?

It features LED illumination in green/red with a nominal voltage of 2.0 to 2.25 VDC.
