| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| Stability | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

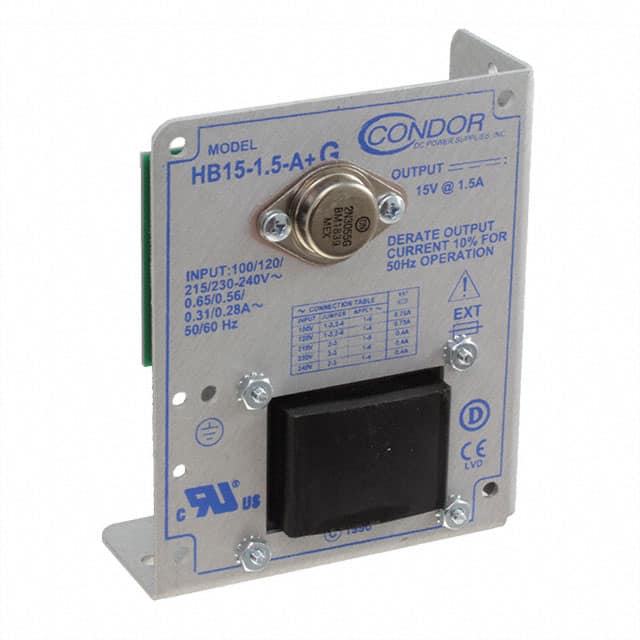

This HB15-1.5-A+G AC-DC converter from SL Power Electronics is a linear power supply designed for ITE (Commercial) applications. It operates with a universal input voltage range of 100 to 240 VAC, providing a stable 15V DC output with a maximum current of 1.5A.
The converter boasts an efficiency of 55% and features adjustable output and remote sense capabilities. It is designed for chassis mounting and meets various safety standards, including CE, cURus, and TUV approvals.
Key electrical specifications include line regulation of ±0.05% and load regulation of ±0.05%. The operating temperature range is from 0°C to 70°C with derating. The unit is built with robust components, including capacitors rated at 105°C and transformer insulation meeting Class F (155°C).
Dimensions are 124.0mm x 101.6mm x 41.4mm. The product is supplied in bulk packaging and has a standard lead time of 12 weeks.
The input voltage range is 100-240 VAC.
The package is Linear B (series) and the mounting type is chassis mount.
The operating temperature range is 0°C to 70°C with derating.
The output voltage is 15V and the output current is 1.5A.
The efficiency is 55%.
Short circuit protection is automatic current limit/foldback. Overvoltage protection is optional on this model.
It is approved with CE, cURus, and TUV.
