| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | 0629+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Features | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |

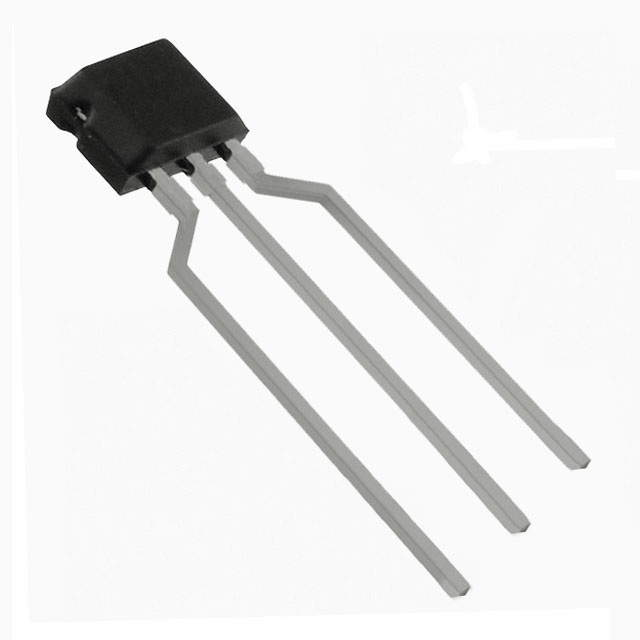

The Micronas HAL505 UA-K is a Hall Effect magnetic switch designed for various sensing applications. It offers temperature compensation for stable operation across its specified temperature range of -40°C to 140°C.
This device features an open drain output type and operates with a supply voltage between 3.8V and 24V. The maximum supply current is 5.2mA, and the maximum output current is 20mA.
The HAL505 UA-K is housed in a TO-92UA-1 package, specifically TO-226-3, TO-92-3 (TO-226AA) with formed leads, suitable for through-hole mounting.
This component belongs to the HAL® 5xy family, known for its reliable Hall Effect sensing technology.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 140°C (TJ).
The supply voltage range is 3.8V to 24V.
It features an open drain output type.
It is supplied in a TO-92UA-1 package, specifically TO-226-3, TO-92-3 (TO-226AA) with formed leads.
It is designed for through-hole mounting.
