Mfr Part #:

HAF-15T

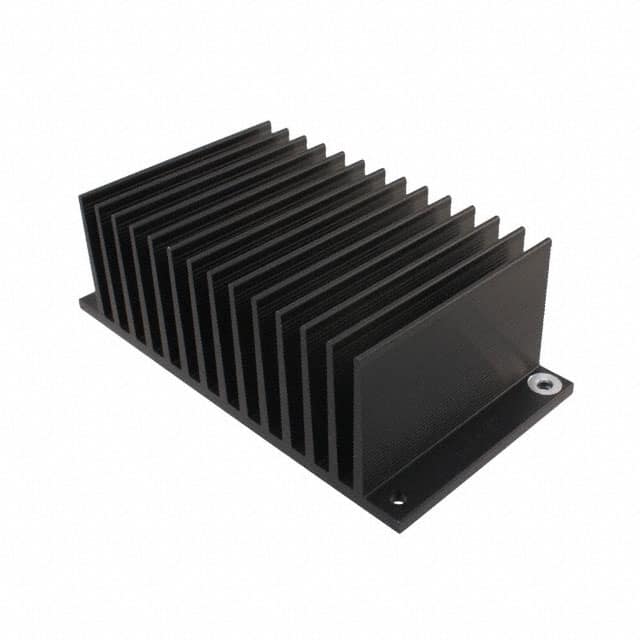

The TDK Corporation HAF-15T is a heat sink designed for use with the PFE Series. It features a widthwise fin design.

Stock on Request

HAF-15T Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Accessories
Manufacturer Name	TDK Corporation
Accessory Type	Heat Sink
For Use With	PFE Series
SVHC Present	Not Present

View Similar Products (0)

HAF-15T Description

Short technical summary and product information.

The TDK Corporation HAF-15T is a heat sink accessory, specifically designed for integration with components from the PFE Series. Its construction features widthwise fins, measuring 1.5 inches, to enhance thermal dissipation.

This component is classified under the Accessories category, falling under the broader Power Supplies - Board Mount umbrella. It is identified by the manufacturer part number 285-HAF-15T-ND.

The HAF-15T meets RoHS3 compliance standards and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life under standard conditions. REACH status is unaffected. Further detailed specifications regarding dimensions, material, and operating temperature are available upon request.

HAF-15T Quick Information

Product Type: Heat Sink

Series: HAF

Canonical Name: TDK Corporation HAF-15T Heat Sink

Subcategory: Accessories

HAF-15T Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

HAF-15T Features

Heat sink for PFE Series components.
Widthwise 1.5 inch fin design.
RoHS3 compliant.
MSL 1 rating.

HAF-15T Applications

Used with TDK PFE series power modules
Provides passive cooling for power converters
Suitable for high-density power supply designs
Enhances thermal performance of PFE modules

HAF-15T FAQs

5 frequently asked questions generated from this part’s specifications.

What type of accessory is the HAF-15T?

The HAF-15T is a heat sink.

What series is the HAF-15T for?

The HAF-15T is for use with the PFE Series.

What is the RoHS status of the HAF-15T?

The HAF-15T is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the HAF-15T?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.

What is the REACH status for the HAF-15T?

The REACH status is Unaffected.

HAF-15T Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.

View All Alternate Parts

HAF-15L

TDK Corporation

The TDK Corporation HAF-15L is a heat sink designed for use with the PFE Series. It features a full brick design with 1.5" fins.

View Part
