| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

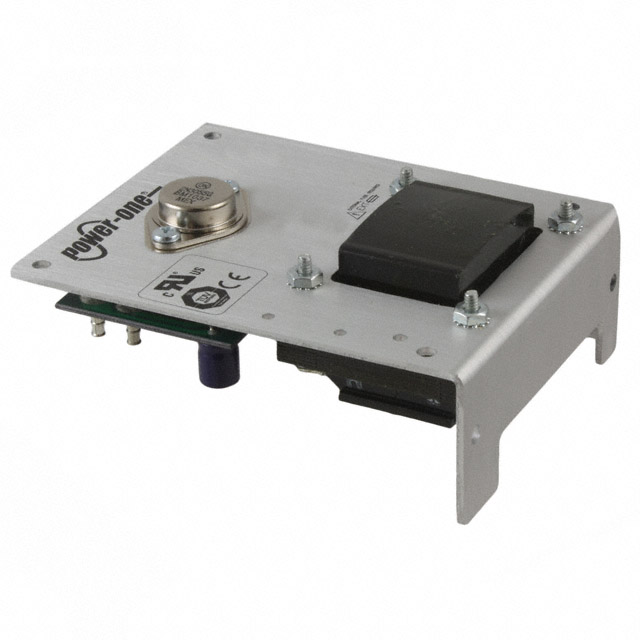

This Bel Power Solutions HAD12-0.4-A is a linear AC DC converter designed for ITE (Commercial) applications. It delivers a total power of 10W with dual outputs of +12V and -12V, each capable of supplying 400 mA.
The converter operates with an input voltage range of 100 to 240 VAC and boasts an efficiency of 55%. Key electrical specifications include line regulation of ±0.05% and load regulation of ±0.05%. It also features automatic current limit/foldback for short circuit protection and an isolation voltage of 3 kV.
Designed for robust performance, the HAD12-0.4-A has an operating temperature range of 0°C to 50°C and a storage temperature range of -40°C to +85°C. Its dimensions are 123.7mm x 101.6mm x 53.3mm, and it is intended for chassis mounting.
Additional features include adjustable output and remote sense capabilities. The Mean Time Between Failures (MTBF) is rated at over 200,000 hours per MIL-HDBK-217D.
The HAD12-0.4-A provides dual outputs of +12V and -12V.
Each output voltage rail (+12V and -12V) can supply 400 mA.
The total power output for the HAD12-0.4-A is 10W.
The operating temperature range is from 0°C to 50°C.
The efficiency of this converter is 55%.
Yes, it features automatic current limit/foldback for short circuit protection.
The isolation voltage rating is 3 kV.
