| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Stability | |
| Storage Temperature | |
| Temperature Coefficient | |
| Temperature Rating | |
| Type | |
| Voltage | |
| Width |

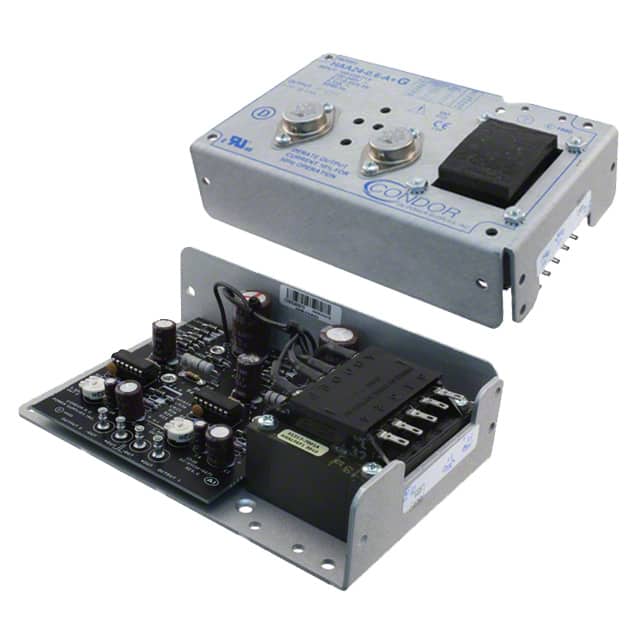

The SL Power Electronics HAA524-A+ is a linear AC/DC converter designed for ITE (Commercial) applications. It provides an adjustable output voltage ranging from 18V to 24V with a maximum power of 16W and a current rating of 2A. This converter features a chassis mount type for easy integration into systems.
Key electrical specifications include a typical efficiency of 45% for 5V units, 55% for 12V and 15V units, and 60% for 20V and 24V units. It operates within a temperature range of 0°C to 70°C with derating. The unit includes features such as adjustable output, remote sense, and universal input. It also offers automatic current limit/foldback for short circuit protection and built-in overvoltage protection on 5V models.
The physical dimensions are 165.1mm in length, 101.6mm in width, and 41.2mm in height. The AC input range is wide, accommodating 100, 120, and 240 Vac. The device meets various approval standards including CE, cURus, and TUV, and complies with FCC and CISPR22 Class B conducted emissions standards.
The HAA524-A+ provides dual outputs: 5V and 18-24V.
AC input is 100, 120, and 240 Vac with +10%/-13% tolerance, and 215 Vac with +12%/-11%, 47 to 63 Hz.
Operating temperature is 0°C to 70°C with derating above 50°C; full rated up to 50°C, derated linearly to 40% at 70°C.
The converter is approved to CE, cURus, and TUV standards.
Yes, overvoltage protection is built-in on all 5 V models set at 6.2 V ±0.4 V; other models use optional overvoltage protection.
Efficiency is 45% for 5 V units, 55% for 12 and 15 V units, and 60% for 20 and 24 V units.
The HAA524-A+ is chassis mount.
