| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Stability | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage |

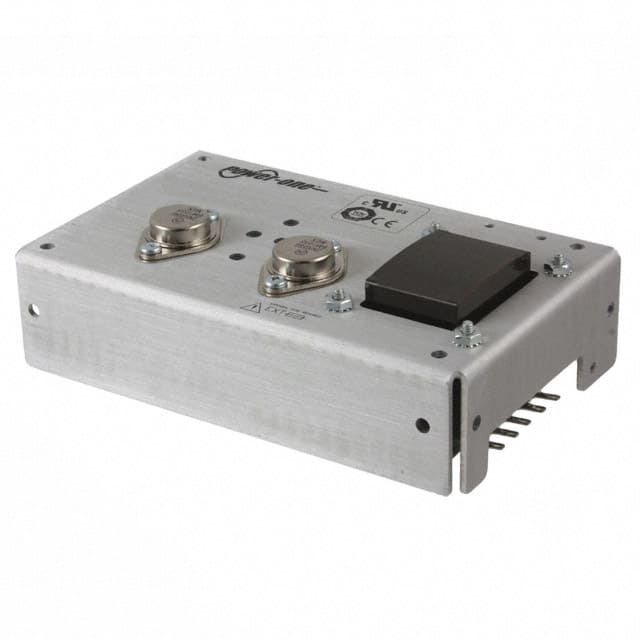

The Bel Power Solutions HAA512-AG is a linear AC DC converter designed for ITE (Commercial) applications. It provides a 12V output voltage with a current rating of 500mA, delivering a total power of 16W.
Key features include adjustable output voltage and remote sense functionality, allowing for greater control and accuracy in power delivery. The converter operates within a temperature range of 0°C to 50°C and has a stability of ±0.05% for 24 hours after warmup. Its AC input range is 100-240 Vac.
This unit is chassis mountable and comes in a module package. It boasts a high MTBF of over 200,000 hours and features automatic current limit/foldback for short circuit protection. The transformer insulation meets Class F (155°C) standards.
The HAA512-AG provides a fixed 12V DC output.
The converter ships in bulk packaging within a standard module case.
The unit operates reliably within an ambient temperature range of 0°C to 50°C.
The converter accepts an AC input voltage ranging from 100 to 240 Vac.
Yes, the unit features automatic current limit and foldback short circuit protection.
Output ripple is specified at a maximum of 3 mV plus 0.05% of the output voltage.
