| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,712 pcs
|
1712 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Mounting Type | |
| Operating Temperature | |
| Slew Rate | |
| Supply Current | |
| Tape & Reel |
The HA9P5320-9 is a precision sample and hold amplifier manufactured by Harris Semiconductor. Designed for high-speed data acquisition systems, it features a fast acquisition time of 1 µs and an aperture time of 25 ns. The amplifier provides a typical droop rate of 0.08 µV/µs at +25°C and 17 µV/µs over the full temperature range.
This monolithic device utilizes the Intersil Dielectric Isolation Process for enhanced speed and latch-free operation. It includes an internal hold capacitor, but external capacitance can be added for improved droop rate at the expense of acquisition time. The HA9P5320-9 is suitable for applications such as precision data acquisition systems, digital-to-analog converter deglitchers, auto-zero circuits, and peak detectors.
The component is available in a 16-SOIC surface mount package and operates within a temperature range of -55°C to 125°C. It is Pb-Free compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $165.89 | $165.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The acquisition time is 1 µs at 0.01% accuracy.
The aperture time is 25 ns.
The droop rate at +25°C is 0.08 µV/µs.
The operating temperature range is -55°C to 125°C.

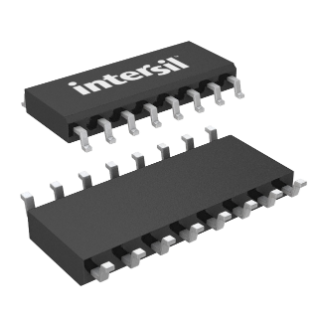

The HA9P5320-9 is supplied in a 16-SOIC (0.154", 3.90mm) surface mount package.
