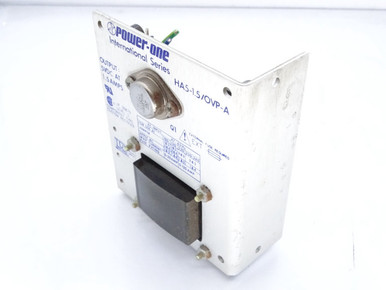

The Bel Power Solutions HA5-1.5/OVP-A is a linear AC/DC converter from the International Linear series, designed for reliable DC power output. It features a single output voltage of 5V with a maximum current of 1.5A, providing a total power of 8W. The converter boasts a high output regulation of ±0.05% and supports worldwide AC input capabilities (100/120/220/230/240 VAC).
Designed for ITE (Commercial) applications, this unit is chassis mounted for robust integration into systems. It operates within a temperature range of 0°C to 50°C and includes features such as adjustable output and remote sense. The Mean Time Before Failure (MTBF) is rated in excess of 300,000 hours, and it comes with a 2-year warranty. Overvoltage protection is standard for 5V single outputs.
Key specifications include a length of 123.7mm (4.87"), width of 101.6mm (4.00"), and height of 53.3mm (2.10"). The type is linear, and it is designed for chassis mounting.
The output voltage is 5V.
The output current is 1.5A.
The power rating is 8W.
The operating temperature range is 0°C to 50°C.
It is chassis mounted.
Key features include adjustable output and remote sense.
The MTBF is in excess of 300,000 hours.
