| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Air Flow | |
| Approval Agency | |
| Bearing Type | |
| Fan Type | |
| Features | |
| Lead Style | |
| Noise | |
| Operating Temperature | |
| Power (Watts) | |
| RPM | |
| Static Pressure | |
| Termination | |
| Termination Style | |
| Voltage | |
| Weight | |
| Width |

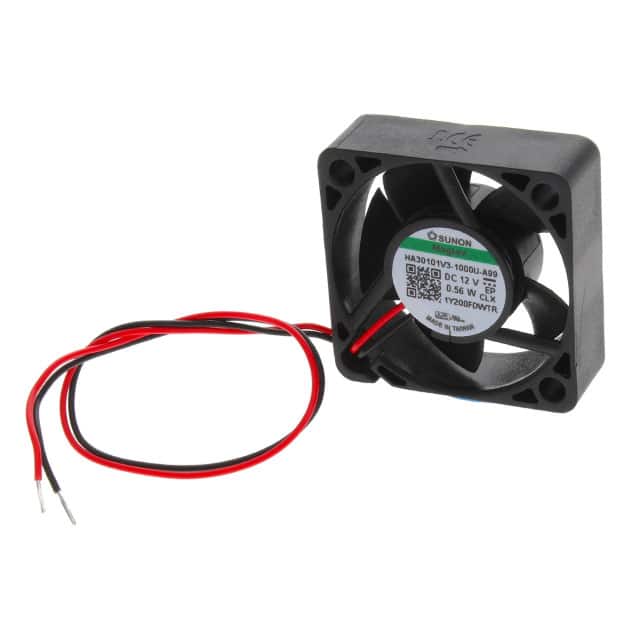

The SUNON HA30101V3-1000U-A99 is a 30x10mm tubeaxial DC fan designed for efficient cooling in compact spaces. Operating at 12VDC with a power consumption of 300mW, it delivers 3.5 CFM (0.098 m³/min) of airflow at 7000 RPM with a static pressure of 24.9 Pa (0.100 in H2O).
The fan utilizes a Vapo-Bearing for enhanced reliability and longevity, with an acoustic noise level of just 15.1 dBA, making it suitable for noise-sensitive applications. It features an auto restart function to protect against stall conditions. The fan is terminated with 2 wire leads for simple integration.
With an operating temperature range of -10 to 70°C and compliance with CE, CUR, TUV, and UL approvals, this fan is suitable for a variety of industrial and commercial cooling applications. The compact 30x30mm square frame with 10mm thickness allows installation in space-constrained designs.
12 VDC.
-10 to 70°C.
3.5 CFM (0.098 m³/min) at 15.1 dBA.
Vapo-Bearing.
CE, CUR, TUV, UL approved. RoHS and REACH compliant (unverified).
30x30mm square, 10mm thick, with 2 wire leads.
Yes, it features auto restart.
