| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Gain | |
| Output Power | |
| Quiescent Current | |
| Supply Voltage |

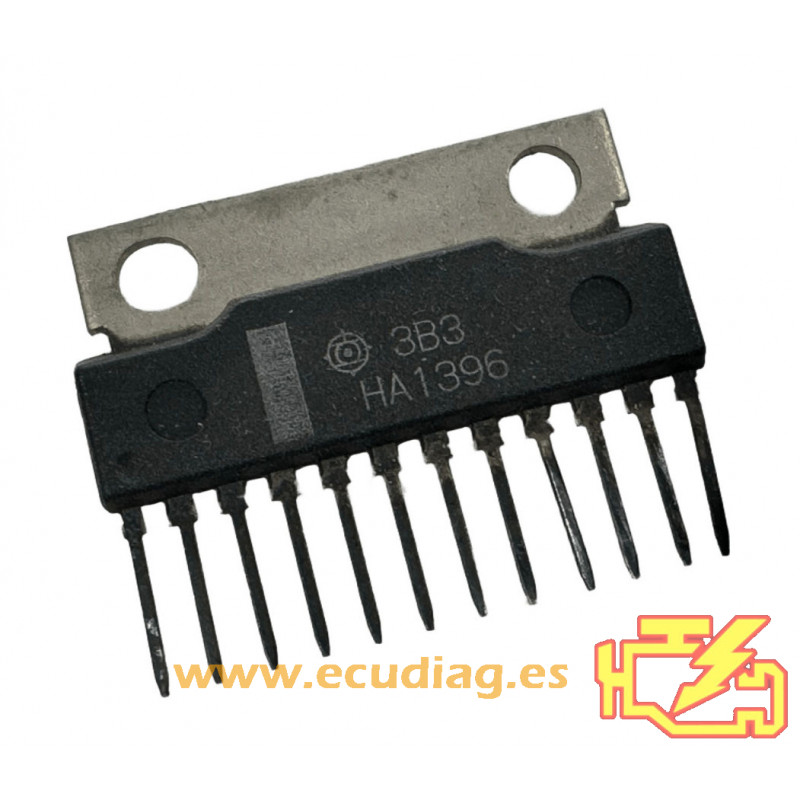

The Hitachi HA1396 is a dual-channel audio power amplifier designed for various audio applications. It provides a minimum output power of 12W into a 4-ohm load, with an upper 3dB frequency response up to 20kHz. The amplifier operates with a nominal supply voltage of 18V and features a minimum gain of 39dB.
Key electrical characteristics include a maximum total harmonic distortion (THD) of 0.1% and a quiescent current of 15mA. The HA1396 comes in a 12-pin package. Its specifications make it suitable for use in audio systems requiring reliable amplification.
This component is classified under audio amplifiers and is part of the broader discrete semiconductor products category. Its design focuses on delivering clear audio output with minimal distortion.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.84 | $1.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The minimum output power is 12W into a 4-ohm load.
The upper 3dB frequency is 20kHz.
The nominal supply voltage is 18V.
The HA1396 has 12 pins.
The maximum THD is 0.1%.
