| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current - Quiescent (Max) | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| Supplier Device Package | |
| Type | |
| Voltage |
The HA1-4905-5 is a general purpose comparator manufactured by Renesas Electronics America Inc. This component is designed for a wide operating voltage range, supporting single supplies from 5V to 15V or dual supplies from ±2.5V to ±7.5V. It features a maximum input offset voltage of 7.5mV at ±15V and a maximum quiescent current of 20mA.
The comparator has 4 elements and an output type of CMOS, Push-Pull. It is housed in a 16-CERDIP package and is designed for through-hole mounting. The operating temperature range for this device is from 0°C to 75°C.
Key electrical characteristics include a typical output current of 50mA and a maximum input bias current of 0.15µA at ±15V. The base product number is HA1-4905.
This component is packaged in industry-standard static shielding packaging, providing electrostatic protection during handling and transportation. Outer packaging includes part number, brand, and quantity for clear identification.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.17 | $1.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HA1-4905-5 operates from a single supply of 5V to 15V or dual supplies of ±2.5V to ±7.5V.

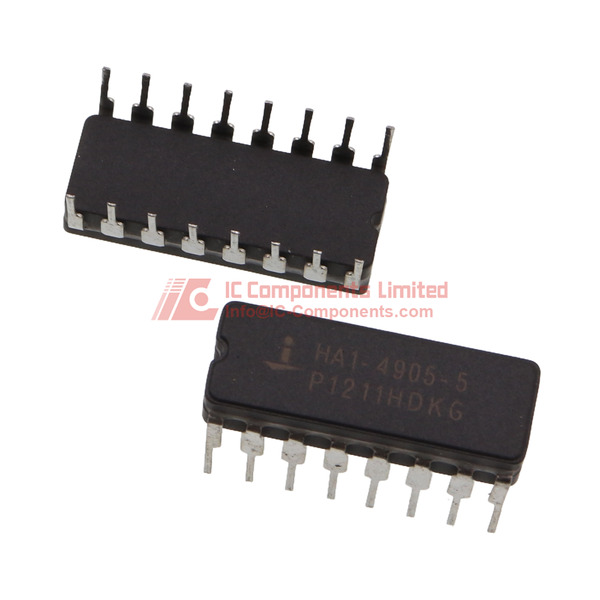

It is available in a 16-pin CERDIP package (16-CDIP) with through-hole mounting.
The operating temperature range is 0°C to 75°C.
It contains four independent comparator elements.
The output type is CMOS and push-pull.
The maximum quiescent current is 20mA.
The maximum input offset voltage is 7.5mV at ±15V.
