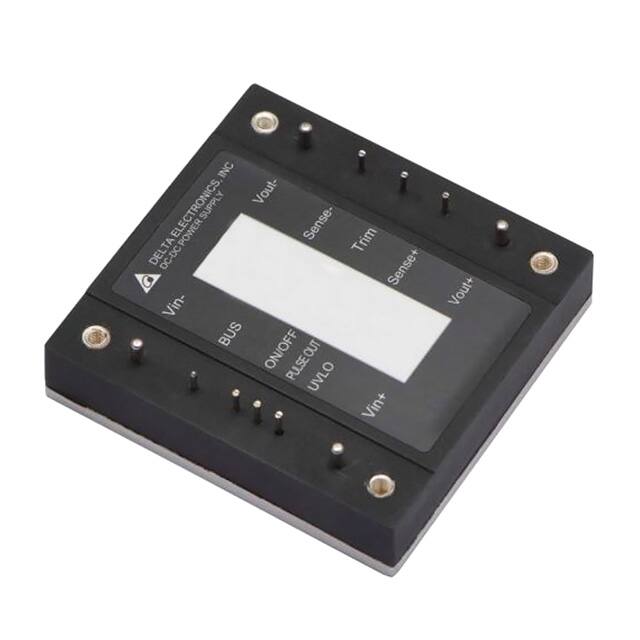

The Delta Electronics H80SV24008PRFS is a high-performance isolated DC/DC converter module from the H80SV_200W series. It delivers a regulated 24V output at up to 8.5A, providing 204W of output power. The module accepts a wide input voltage range of 16.8V to 137.5V continuous, with transient capability up to 200V for 1 second.
Key electrical features include 4242Vdc reinforced isolation, typical efficiency of 88% at 72Vin and full load, and comprehensive protection including input UVLO, output OVP, OCP, and OTP. The module supports adjustable output voltage and remote on/off control with active-high enable logic.
Mechanically, the converter is housed in a standard half brick package measuring 63.1mm x 60.6mm x 13.0mm. The mounting type is through hole, with threaded mounting holes (M3*0.5) as indicated by the 'S' option code. The operating baseplate temperature range is -40°C to +100°C, with derating required above certain conditions.
This module is designed for commercial ITE (Information Technology Equipment) applications and meets safety standards including IEC/EN/UL/CSA 62368-1 and 60950-1. It is RoHS 6/6 (Lead Free) compliant per the 'F' option code.
| Qty | Low | High |
|---|---|---|
| 120+ | $128.55 | $128.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 24V nominal with ±1% setpoint accuracy, and the maximum output current is 8.5A, providing 204W of output power.
The continuous input voltage range is 16.8V to 137.5V, with a transient capability of 200V for 1 second.
It provides 4242Vdc reinforced isolation.
The operating baseplate temperature range is -40°C to +100°C, with derating required at higher temperatures. The ambient operating temperature range is -40°C to 85°C with derating.
The module includes input under-voltage lockout (UVLO), output over-voltage protection (OVP), over-current protection (OCP), and over-temperature protection (OTP).
The module is in a half brick package with dimensions 63.1mm x 60.6mm x 13.0mm (2.48" x 2.39" x 0.51"). It features through-hole mounting with threaded mounting holes (M3*0.5).
The datasheet indicates RoHS 6/6 (Lead Free) compliance for the 'F' option code, but this has not been independently verified.
