| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
148 pcs
|
148 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Termination Style | |
| Voltage Rating |

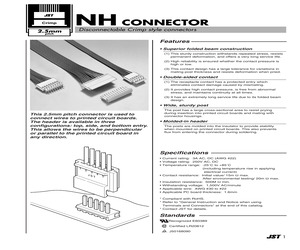

The H6P-SHF-AA is a 6-position, single-row receptacle housing from the JST NH series. It features a 2.50mm pitch and is designed for wire-to-board connections. The housing accepts female socket contacts with crimp termination, providing reliable and secure connections.
This housing is rated for 3A current and 250V voltage, with an operating temperature range of -25°C to 85°C. It has a contact resistance of 10mΩ initial and 20mΩ after environmental tests, insulation resistance of 1000MΩ minimum, and can withstand 1000V AC for 1 minute. The housing accommodates wire gauges from AWG 28 to 22.
The housing features a latch lock fastening type for secure mating and is designed for free hanging (in-line) mounting. It is made of natural color material and is suitable for use with PCB thickness of 1.6mm. The NH series connectors are known for their double-sided contact design, ensuring excellent contact pressure and stability.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.15 | $0.15 |
| 10+ | $0.13 | $0.13 |
| 25+ | $0.11 | $0.11 |
| 100+ | $0.11 | $0.11 |
| 250+ | $0.10 | $0.10 |
| 1,000+ | $0.09 | $0.09 |
| 3,000+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The H6P-SHF-AA has 6 positions.
The pitch is 2.50mm.
The current rating is 3A (AC/DC).
The voltage rating is 250V (AC/DC).
The mounting type is free hanging (in-line).
-25°C to 85°C.
AWG 28 to 22.
