| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
38 pcs
|
38 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Height | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Turns Ratio | |
| Width |

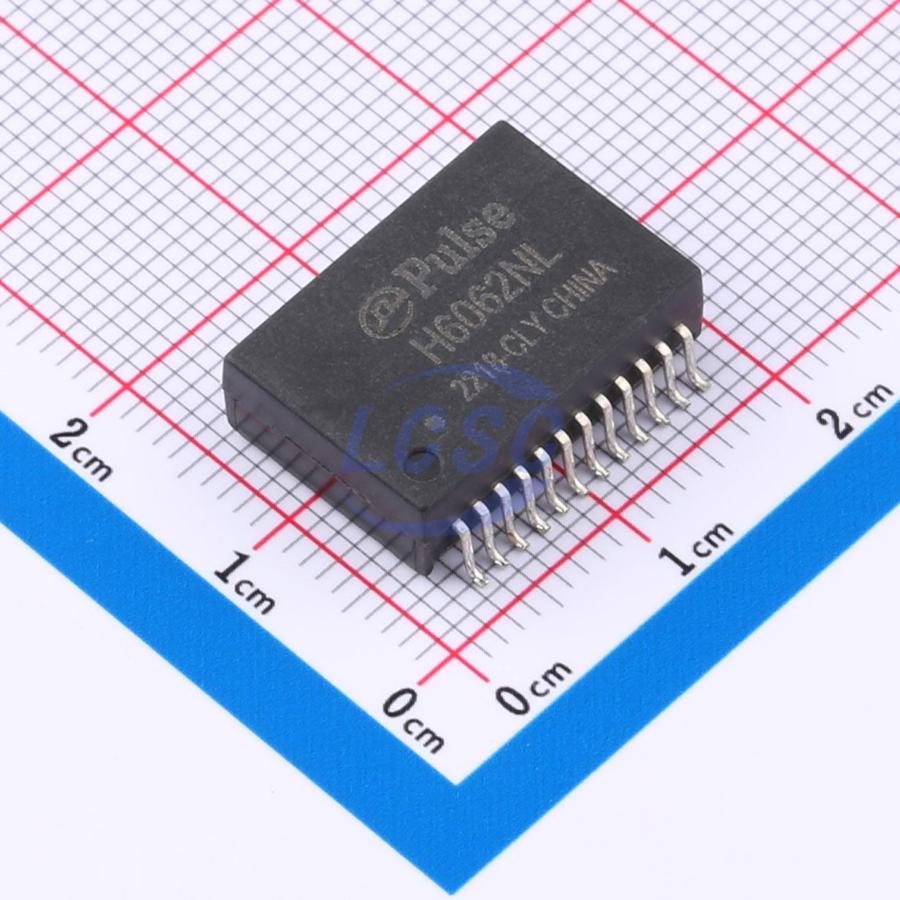

The H6062NL from Pulse Electronics is a pulse transformer module specifically designed for Gigabit Power over Ethernet (PoE) applications. This component is housed in a compact surface mount package, facilitating easy integration into printed circuit boards.
Key electrical characteristics include a turns ratio of 1:1 for both the transmitter and receiver. The module operates reliably within a temperature range of 0°C to 70°C, making it suitable for a variety of environmental conditions. Its dimensions are 17.53mm in length and 12.20mm in width, with a height of 5.76mm.
This pulse transformer is compliant with RoHS3 standards, indicating adherence to environmental regulations regarding hazardous substances. The Moisture Sensitivity Level (MSL) is rated at 1, signifying unlimited usability under standard conditions. The REACH status is unaffected, further confirming its compliance with global chemical regulations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.88 | $0.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range for the H6062NL is 0°C to 70°C.
The H6062NL uses a surface mount type.
The turns ratio is 1:1 for the transmitter and 1:1 for the receiver.
The dimensions are 17.53mm in length, 12.20mm in width, and 5.76mm in height.
