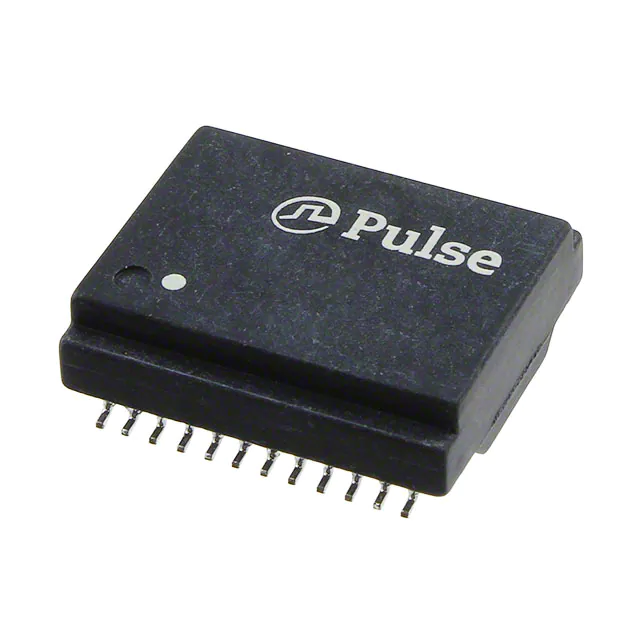

H6062FNLT The Pulse Electronics H6062FNLT is a LAN 10/100/1000 Base-T pulse transformer with 350µH inductance. It features a 1CT:1CT turns ratio for both transmitter and receiver.
Mfr Part #:

H6062FNLT

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics H6062FNLT is a LAN 10/100/1000 Base-T pulse transformer with 350µH inductance. It features a 1CT:1CT turns ratio for both transmitter and receiver.
✓ Total Stock: 1,335 pcs
$ Price Range: $3.00

H6062FNLT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
1,335 pcs
On Request
1335 pcs On Request 1 On Request On Request 17+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

H6062FNLT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Height
Inductance
Length
Mounting Type
Operating Temperature
Transformer Type
Turns Ratio
Width
View Similar Products (0)

H6062FNLT Description

Short technical summary and product information.

This Pulse Electronics H6062FNLT is a pulse transformer designed for LAN 10/100/1000 Base-T applications. It offers an inductance of 350µH and features a 1CT:1CT turns ratio for both the transmitter and receiver sides.



The transformer is suitable for operation within a temperature range of 0°C to 70°C. Its mechanical dimensions are 17.50mm in length, 15.24mm in width, and a maximum seated height of 5.72mm. The mounting type is surface mount, making it convenient for various PCB designs.



Environmental compliance includes RoHS3 compliance, an MSL of 1 Unlimited, and REACH Unaffected status. The component is provided in Tape & Reel (TR) or Cut Tape (CT) packaging, with a standard package quantity of 300 units.

H6062FNLT Quick Information

Product Type: Pulse Transformer
Canonical Name: Pulse Electronics H6062FNLT LAN 10/100/1000 Base-T Pulse Transformer
Subcategory: Pulse Transformer

H6062FNLT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

H6062FNLT Estimated Pricing

Qty Low High
1+ $3.00 $3.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

H6062FNLT Features

  • 350µH inductance for LAN applications.
  • 1CT:1CT turns ratio for TX/RX.
  • Supports 10/100/1000 Base-T networks.
  • Surface mount for easy integration.
  • Operates from 0°C to 70°C.

H6062FNLT Applications

  • Ideal for Ethernet network interfaces.
  • Suitable for high-speed data communication.
  • Used in networking equipment designs.
  • Component for communication systems.

H6062FNLT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the H6062FNLT transformer?

The inductance of the H6062FNLT transformer is 350µH.

What type of transformer is the H6062FNLT?

The H6062FNLT is a LAN 10/100/1000 Base-T pulse transformer.

What is the turns ratio for the H6062FNLT?

The turns ratio is 1CT:1CT for both the transmitter and receiver.

What is the operating temperature range for this pulse transformer?

The operating temperature range is 0°C to 70°C.

How is the H6062FNLT transformer mounted?

The H6062FNLT transformer is designed for surface mount.
